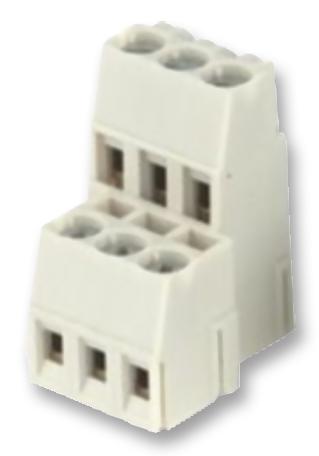

WIELAND ELECTRIC - 25.178.5353.0 - Wire-To-Board Terminal Block, 5 mm, 6 Ways, 22 AWG, 12 AWG, 4 mm², Screw
- Pitch Spacing: 5mm
- No. of Positions: 6Ways
- Wire Size AWG Min: 22AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 4mm²
- Wire Connection Method: Screw
- Rated Current: 30A
- Rated Voltage: 300V
- Block Orientation: Through Hole Right Angle
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- Material: Light grey polyamide UL94V-O
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 160V
- Wire Area Size Max: 1mm²
