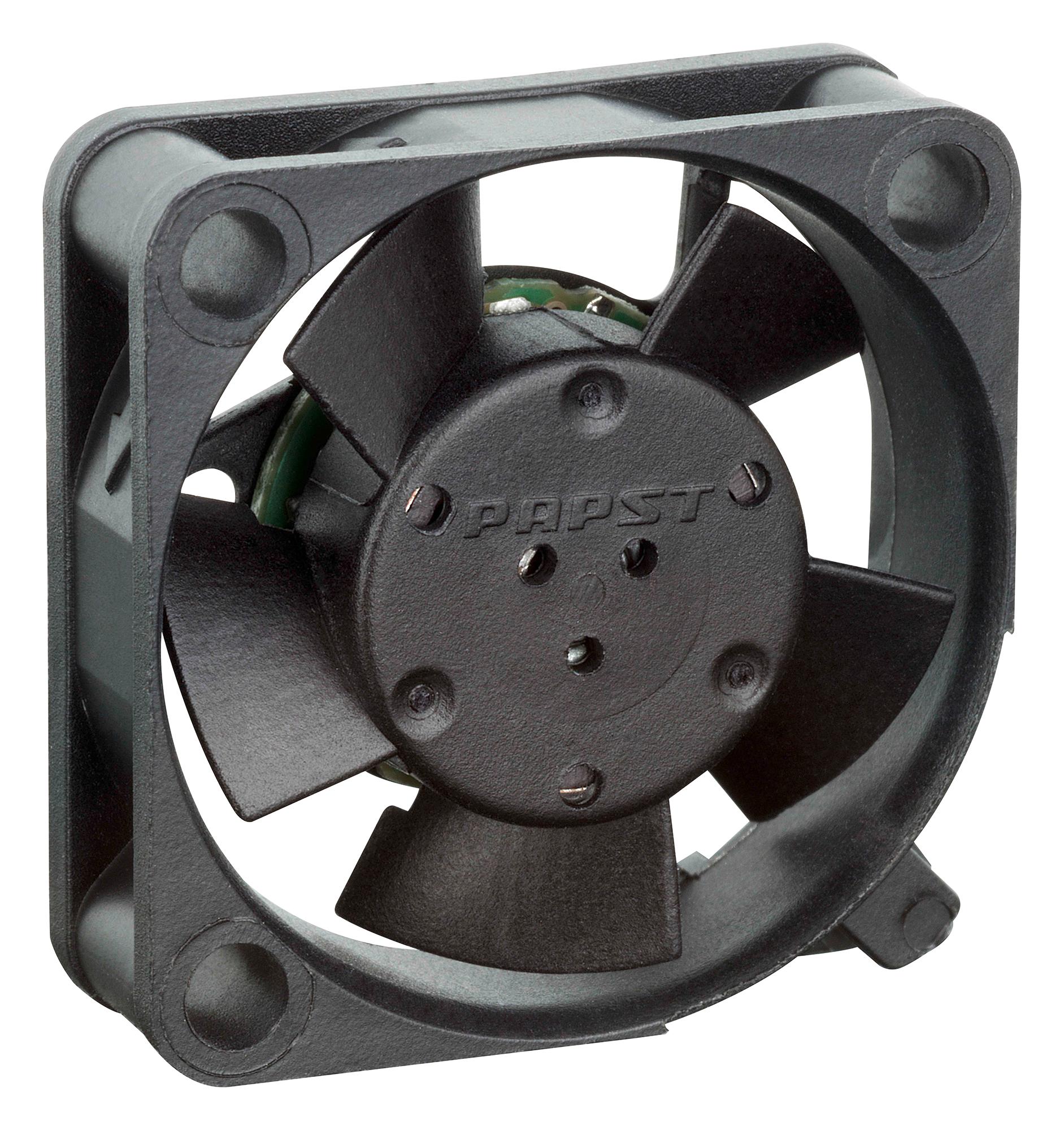

252/2N Fan, 25mm, 12VDC, S/WSS ebm-papst

EBM-PAPSTSKU:252/2N Bestelcode:9600752

Prijs:
Actie prijs€44,36

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (44 units)

Documenten en downloads

Omschrijving

EBM-PAPST - 252/2N - DC Axial Fan, 12 V, Square, 25 mm, 8 mm, Sleeve Bearing, 1.9 CFM

  • Supply Voltage: 12V
  • Current Type: DC
  • Fan Frame Size: 25mm
  • External Depth: 8mm
  • Noise Rating: 15dBA
  • Flow Rate - Imperial: 1.9cu.ft/min
  • Flow Rate - Metric: 3.2m³/h
  • Bearing Type: Sleeve
  • Power Connection Type: 3 Lead Wires, Sensor Output
  • Current Rating: -
  • Product Range: 250 Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Height: 25mm
  • External Width: 25mm
  • Fixing Centres: 20mm
  • Fixing Hole Diameter: 2.8mm
  • Frame Dimensions: 25mm x 25mm x 8mm
  • Input Voltage Max: 14V
  • Input Voltage Min: 10V
  • Lead Length: 160mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Operating life Time: 40000h
  • Panel Cutout Diameter: 25mm
  • Power Consumption: 0.5W
  • Speed Range Max: 9000rpm
  • Supply Voltage DC Max: 14V
  • Supply Voltage DC Min: 10V
