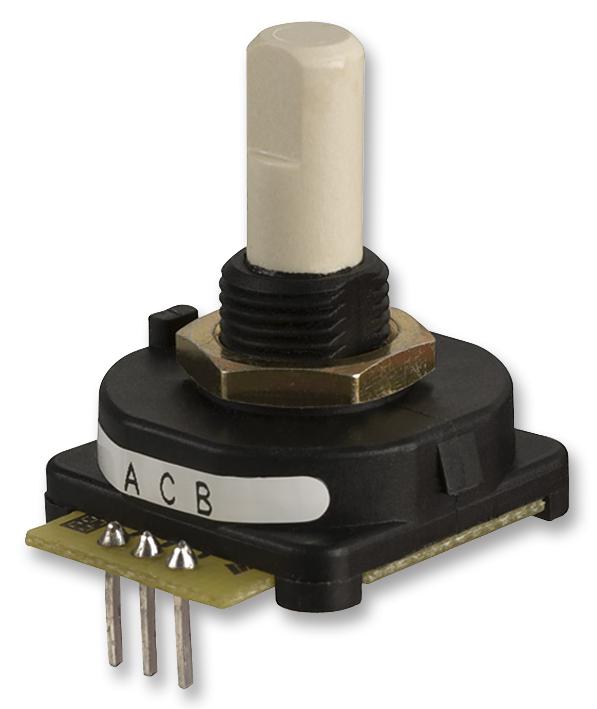

Omschrijving
- Supply Voltage Min: -
- Supply Voltage Max: 115V
- Rotational Speed Max: -
- Encoder Resolution: 36
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Contact Current DC Max: 250mA
- Contact Resistance: 75mohm
- Contact Voltage DC Max: 20V
- External Depth: 21.97mm
- External Length / Height: 8.71mm
- External Width: 23.5mm
- Insulation Resistance: 1000Mohm
- No. of Pulses Per Revolution: 36
- Output Type: Quadrature
- Rotation Mechanical Angle: 10°
- Rotational Life Cycles: 100000
- Shaft Diameter: 6.35mm
- Shaft Length: 12.7mm
- Switch Current @ 115V: 1.5mA
- Switch Current @ 14V: 150mA
- Thread Length: 6.35mm
- Thread Size: 3/8-32 UNEF-2A
- Type: Mechanical Encoder
