Omschrijving

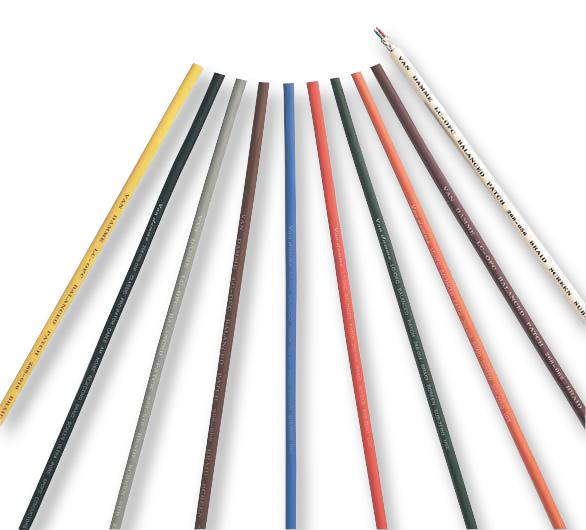

VAN DAMME - 268018C - Multicore Cable, Balanced Patch, Screened, 2 Core, 24 AWG, 0.22 mm², 328 ft, 100 m
- Cable Shielding: Screened
- No. of Cores: 2Core
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.22mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 28 x 0.1mm
- Conductor Material: Copper
- Jacket Material: Neoprene, PVC
- External Diameter: 4.85mm
- Voltage Rating: 250V
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Cable Type: Shielded
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Resistance per Metre: 0.084ohm
