Omschrijving

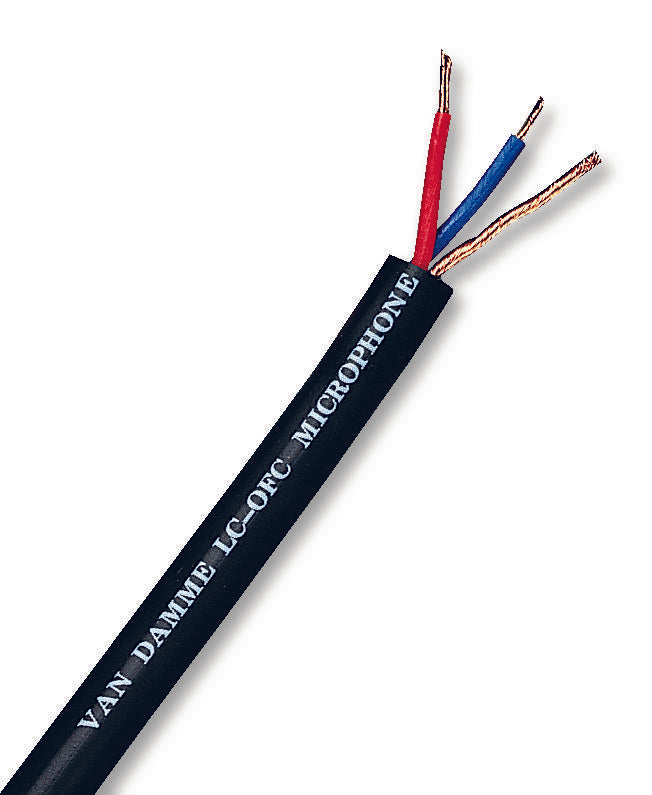

VAN DAMME - 268020C - Multipair Cable, Microphone, Per Metre, Screened, 1 Pair, 24 AWG, 0.22 mm²
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.22mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Black
- No. of Max Strands x Strand Size: 7 x 0.1mm, 21 x 0.1mm
- Voltage Rating: -
- Jacket Material: Neoprene, PVC
- Conductor Material: Copper
- External Diameter: 6.35mm
- Product Range: Tour Grade Classic Mic XKE Series
- SVHC: No SVHC (27-Jun-2018)
- Cable Type: Shielded
- Core - Core Capacitance: 100pF/m
- Core-Screen Capacitance: 165pF/m
- No. of Cores: 2Core
- Outer Diameter: 6.35mm
- Resistance per Metre: 0.084ohm/m
- Wire Size: 24AWG
