Omschrijving

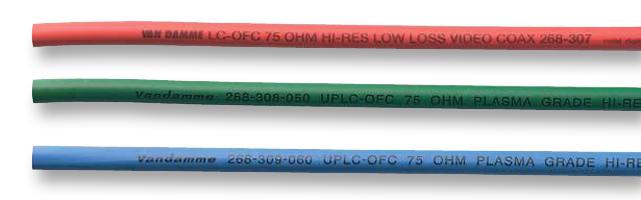

VAN DAMME - 268308C - Coaxial Cable, Plasma Grade, RG59, 24 AWG, 0.2 mm², 75 ohm, 328 ft, 100 m
- Coaxial Cable Type: RG59
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.2mm²
- Impedance: 75ohm
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Green
- Jacket Material: Neoprene, PVC
- Conductor Material: Copper
- No. of Max Strands x Strand Size: 7 x 0.2mm
- External Diameter: 6.1mm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Attenuation @ 10MHz: 3.7dB
- Attenuation @ 1MHz: 1.2dB
- Attenuation @ 4.4MHz: 2.5dB
- Capacitance per Metre: 67pF
