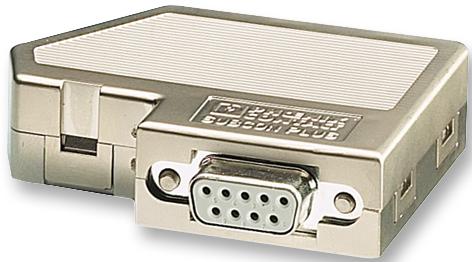

2744694 Connector, CANBus, 90DEGR Phoenix Contact

PHOENIX CONTACTSKU:2744694 Bestelcode:9401350

Prijs:
Actie prijs€78,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (31 units)

Documenten en downloads

Omschrijving

PHOENIX CONTACT - 2744694 - D Sub Connector, DB9, Standard, Receptacle, SUBCON, 9 Contacts, DE, Screw

  • No. of Contacts: 9Contacts
  • Gender: Receptacle
  • Contact Termination Type: Screw
  • D Sub Shell Size: DE
  • Product Range: SUBCON Series
  • Connector Body Material: Metal Body
  • Contact Material: -
  • Contact Plating: -
  • SVHC: Lead (15-Jan-2019)
  • Cable Diameter Max: 10mm
  • Cable Diameter Min: 6mm
  • Conductor Area CSA: 0.14mm²
  • Connector Mounting: Cable Mount
  • Contact Termination: Solder
  • Cross-section Area Max: 1.5mm²
  • D Sub Connector Type: Standard
  • Material: ABS
  • No. of Mating Cycles: 200
  • Termination Method: Screw
  • Wire Size AWG Max: 16AWG
  • Wire Size AWG Min: 26AWG
  • Working Voltage: 60V
