Documenten en downloads
Omschrijving

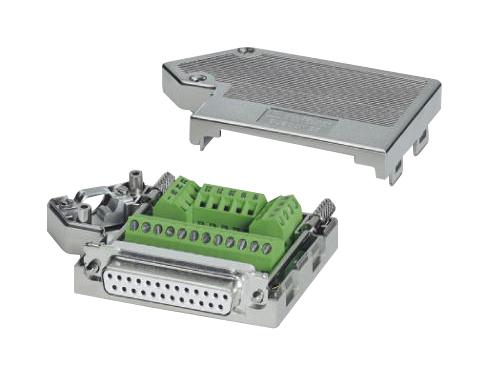

PHOENIX CONTACT - 2761619 - D Sub Connector, Subcon, DB25, Standard, Receptacle, SUBCON, 25 Contacts, DB, Screw
- No. of Contacts: 25Contacts
- Gender: Receptacle
- Contact Termination Type: Screw
- D Sub Shell Size: DB
- Product Range: SUBCON Series
- Connector Body Material: Metal Body
- Contact Material: -
- Contact Plating: -
- SVHC: Lead (15-Jan-2019)
- Cable Diameter Max: 10mm
- Cable Diameter Min: 4mm
- Case Material: ABS-VO, metal-plated
- Connector Mounting: Cable Mount
- Contact Termination: Screw
- Current Rating: 1A
- D Sub Connector Type: Standard
- DC Current Max: 1A
- Material: ABS
- No. of Mating Cycles: 50
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Termination Method: Screw
- Voltage Rating VAC: 60V
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 26AWG
- Working Voltage: 60V
