Omschrijving

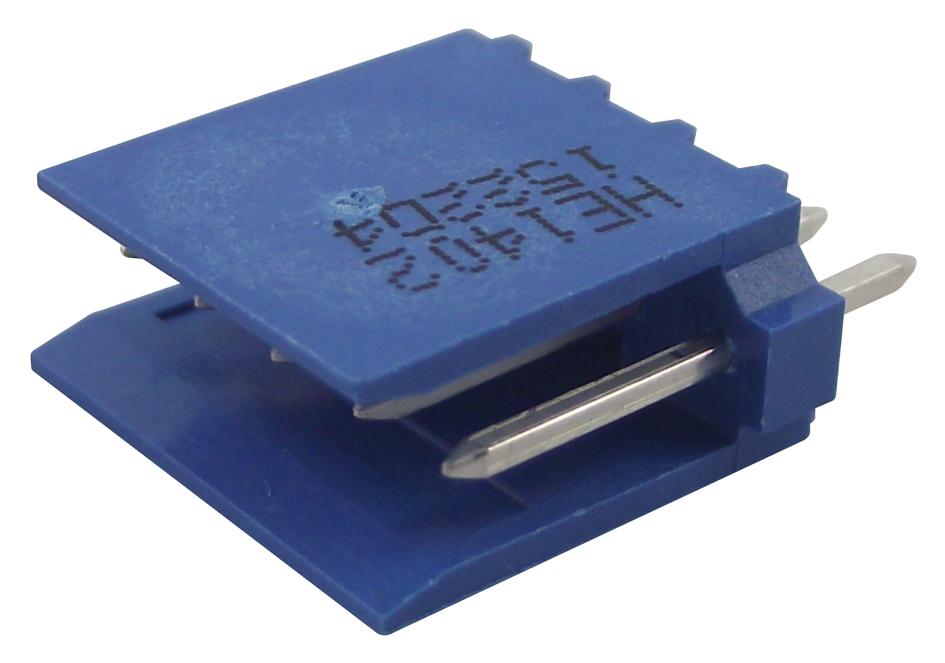

AMP - TE CONNECTIVITY - 281695-5 - Pin Header, Vertical, Wire-to-Board, 2.54 mm, 1 Rows, 5 Contacts, Through Hole Straight
- Pitch Spacing: 2.54mm
- No. of Contacts: 5Contacts
- Gender: Header
- Product Range: AMPMODU HE14 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: HE, NFC
- Colour: Blue
- Contact Resistance: 30mohm
- Current Rating: 3A
- De-mating Force: 3N
- External Length / Height: 12.7mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Material: Glass Filled Polyester
- No. of Mating Cycles: 30
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- PCB Hole Diameter: 1mm
- Working Voltage: 500V
Verwachte verzendkosten
Bekijk ook eens

AMP - TE CONNECTIVITY
1-281695-0 Header, Vertical, 1ROW, 10WAY Amp - Te Connectivity
Actie prijs€3,99
Op voorraad, 1464 producten
AMP - TE CONNECTIVITY
281739-4 Header, Vertical, 2Row, 8WAY Amp - Te Connectivity
Actie prijs€3,04
Op voorraad, 582 producten
AMP - TE CONNECTIVITY
281698-6 Header, Right Angle, 1ROW, 6Way Amp - Te Connectivity
Actie prijs€1,13
Op voorraad, 1060 producten
AMP - TE CONNECTIVITY
281742-5 Header, Right Angle, 2Row, 10WAY Amp - Te Connectivity
Actie prijs€3,97
Op voorraad, 1736 producten
AMP - TE CONNECTIVITY
281739-3 Connector, Header, THT, 2.54mm, 6Way Amp - Te Connectivity
Actie prijs€2,71
Op voorraad, 2588 producten
AMP - TE CONNECTIVITY

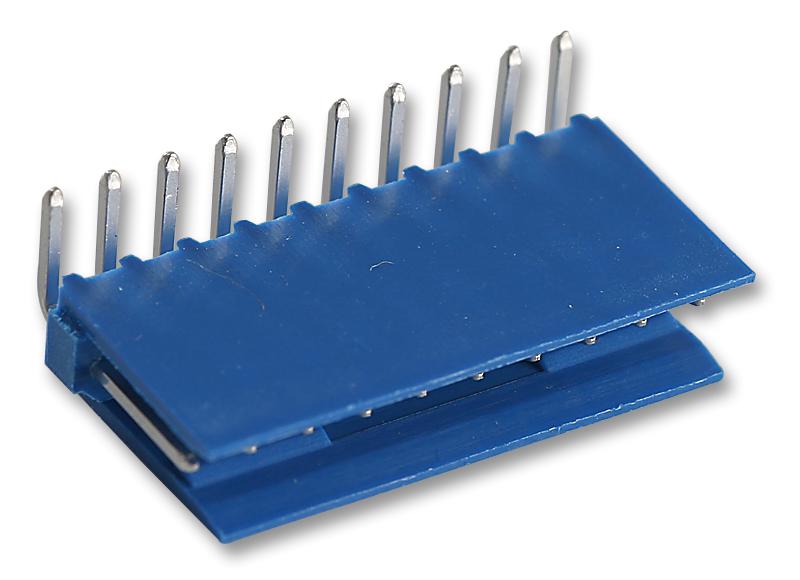

1-281698-0 Header, Right Angle, 1ROW, 10WAY Amp - Te Connectivity
