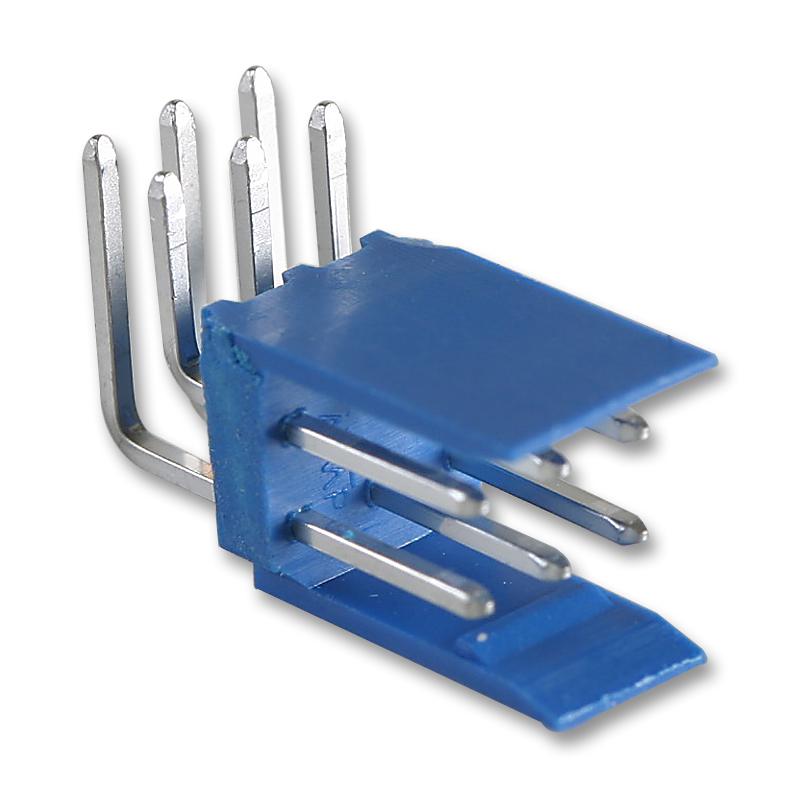

AMP - TE CONNECTIVITY - 281742-3 - Pin Header, Right Angle, Wire-to-Board, 2.54 mm, 2 Rows, 6 Contacts, Through Hole Right Angle
- Pitch Spacing: 2.54mm
- No. of Contacts: 6Contacts
- Gender: Header
- Product Range: AMPMODU HE14 Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: HE, NFC
- Colour: Blue
- Contact Resistance: 30mohm
- Current Rating: 3A
- De-mating Force: 3N
- External Length / Height: 7.62mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Material: Glass Filled Polyester
- No. of Mating Cycles: 30
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- PCB Hole Diameter: 1mm
- Working Voltage: 500V
