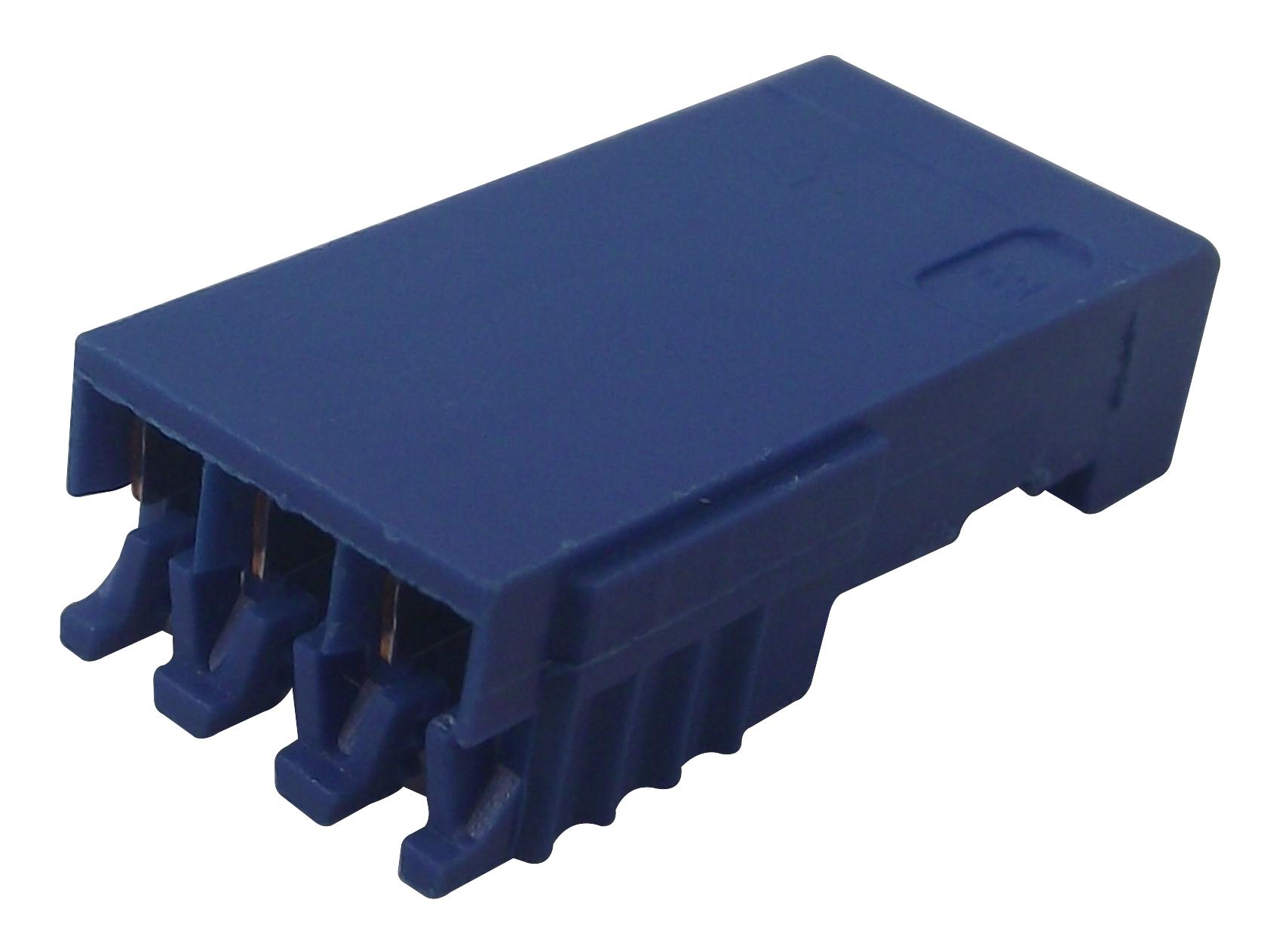

281786-3 Socket IDT, 1ROW, 3WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU:281786-3 Bestelcode:429442

Prijs:
Actie prijs€2,89

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1433 units)

Omschrijving

AMP - TE CONNECTIVITY - 281786-3 - IDC Connector, IDC Receptacle, Female, 1 Row, 3 Contacts, Cable Mount

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 3Contacts
  • Gender: Receptacle
  • Product Range: AMPMODU HE14 Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Blue
  • Contact Resistance: 30mohm
  • Current Rating: 3A
  • External Length / Height: 17.8mm
  • External Width: 5.1mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Material: Glass Filled Polyester
  • No. of Mating Cycles: 30
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Working Voltage: 500V
