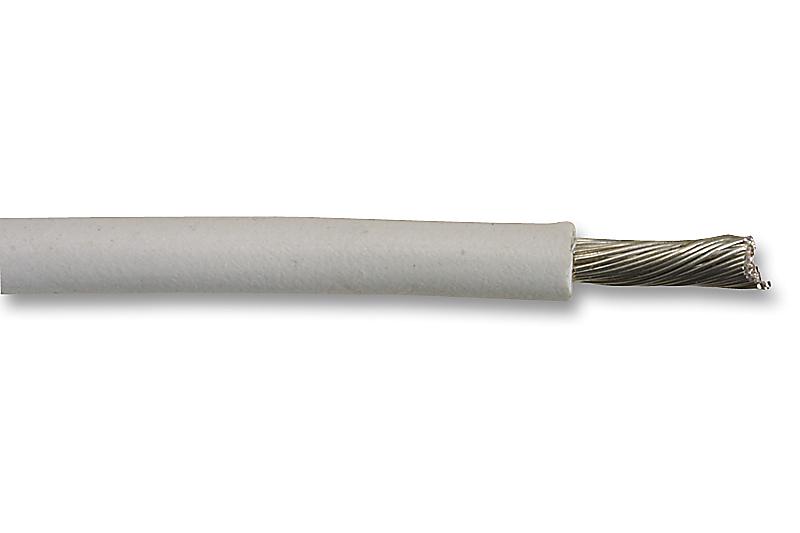

ALPHA WIRE - 2841/7 WH001 - Wire, Stranded, Hook Up, PTFE, White, 30 AWG, 0.057 mm², 1000 ft, 305 m
- Jacket Material: PTFE
- Jacket Colour: White
- Wire Gauge: 30AWG
- Conductor Area CSA: 0.057mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 7 x 38AWG
- Voltage Rating: 250V
- Conductor Material: Silver Plated Copper
- External Diameter: 0.61mm
- Approval Specification: MIL-DTL-16878/6 (Type ET), UL VW-1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
