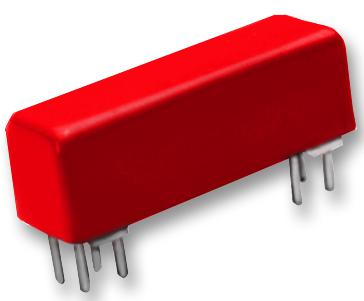

2911-05-321 RELAY, REED, SPDT, 150V, 0.25A, THT COTO TECHNOLOGY

COTO TECHNOLOGY - 2911-05-321 - Reed Relay, SPDT, 5 VDC, 2900, Through Hole, 230 ohm, 250 mA

• Contact Configuration: SPDT
• Coil Voltage: 5VDC
• Product Range: 2900 Series
• Relay Mounting: Through Hole
• Coil Resistance: 230ohm
• Switching Current Max: 250mA
• Switching Voltage Max: 150V
• SVHC: No SVHC (15-Jan-2019)
• Case Material: Epoxy coated Steel
• Coil Voltage VDC Nom: 5V
• Contact Resistance: 150mohm
• Contact Voltage DC Max: 150V
• Current Max: 1A
• External Depth: 20.82mm
• External Height: 7.11mm
• External Length / Height: 7.11mm
• External Width: 6.35mm
• Insulation Resistance: 100Gohm
• Must Actuate Voltage: 3.8VDC
• Must Release Voltage: 0.4VDC
• No. of Electrical Operations: 100000000
• No. of Mechanical Operations: 100000000
• No. of Pins: 7Pins
• Operating Temperature Max: 85°C
• Operating Temperature Min: -20°C
• Operating Time: 1ms
• Release Time: 2ms
• Row Pitch: 2.54mm
• Switch Current Max: 250mA
• Switch Power Max: 3W
• Type: Co-axial Shield
