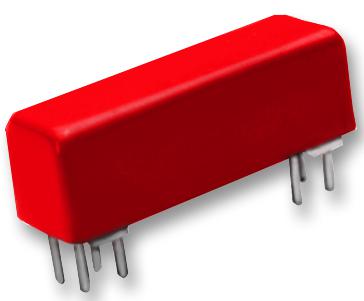

2911-12-301 Relay, Reed, SPDT, 150V, 0.25A, THT COTO Technology

COTO TECHNOLOGYSKU:2911-12-301 Bestelcode:1326197

Prijs:
Actie prijs€45,60

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (522 units)

Documenten en downloads

Omschrijving

COTO TECHNOLOGY - 2911-12-301 - Reed Relay, SPDT, 12 VDC, 2900, Through Hole, 1.5 kohm, 250 mA

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Product Range: 2900 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 1.5kohm
  • Switching Current Max: 250mA
  • Switching Voltage Max: 150V
  • SVHC: No SVHC (15-Jan-2019)
  • Case Material: Epoxy coated Steel
  • Coil Voltage VDC Nom: 12V
  • Contact Current DC Max: 250mA
  • Contact Resistance: 150mohm
  • Contact Voltage DC Max: 150V
  • External Depth: 20.82mm
  • External Height: 7.11mm
  • External Length / Height: 7.11mm
  • External Width: 6.35mm
  • Insulation Resistance: 100Gohm
  • Must Actuate Voltage: 9VDC
  • Must Release Voltage: 1VDC
  • No. of Electrical Operations: 100000000
  • No. of Mechanical Operations: 100000000
  • No. of Pins: 7Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Operating Time: 1ms
  • Release Time: 2ms
  • Row Pitch: 2.54mm
  • Switch Current Max: 250mA
  • Switch Power Max: 3W
