2MS2T2B2M6RE Switch, Toggle, SPDT, On-Mom multicomp Pro

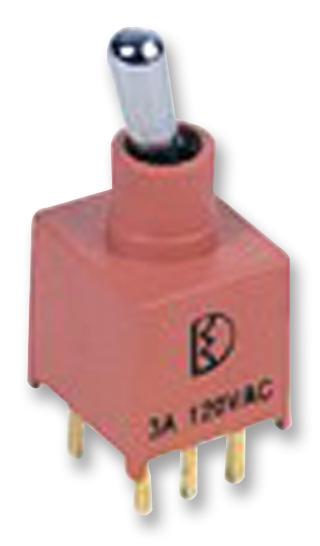

MULTICOMP PRO - 2MS2T2B2M6RE - Toggle Switch, On-(On), SPDT, Non Illuminated, 2M, Through Hole, 100 mA

• Switch Operation: On-(On)
• Contact Configuration: SPDT
• Illumination: Non Illuminated
• Product Range: 2M Series
• Contact Current Max: 100mA
• Switch Mounting: Through Hole
• Contact Voltage AC Nom: 20V
• Switch Terminals: Solder
• Contact Voltage DC Nom: 20V
• SVHC: No SVHC (15-Jan-2018)
• AC Power: 0.4VA
• Actuation Type: Bat
• Approval Category: UL Recognised
• Bush Length: 5.59mm
• Contact Resistance: 20mohm
• Contact Voltage AC Max: 20VAC
• Contact Voltage DC Max: 20VDC
• DC Power: 0.4VA
• External Depth: 9.09mm
• External Length / Height: 5.08mm
• External Width: 8.13mm
• Flammability Rating: UL 94V-0
• Insulation Resistance: 1000Mohm
• Lever Length: 5.33mm
• Material: DAP
• No. of Mechanical Operations: 30000
• Operating Temperature Max: 85°C
• Operating Temperature Min: -30°C
• Panel Cutout Diameter: 6mm
• Single Flat Panel Cut-out Diameter: 4.39mm
• Termination Method: Through Hole
