Omschrijving

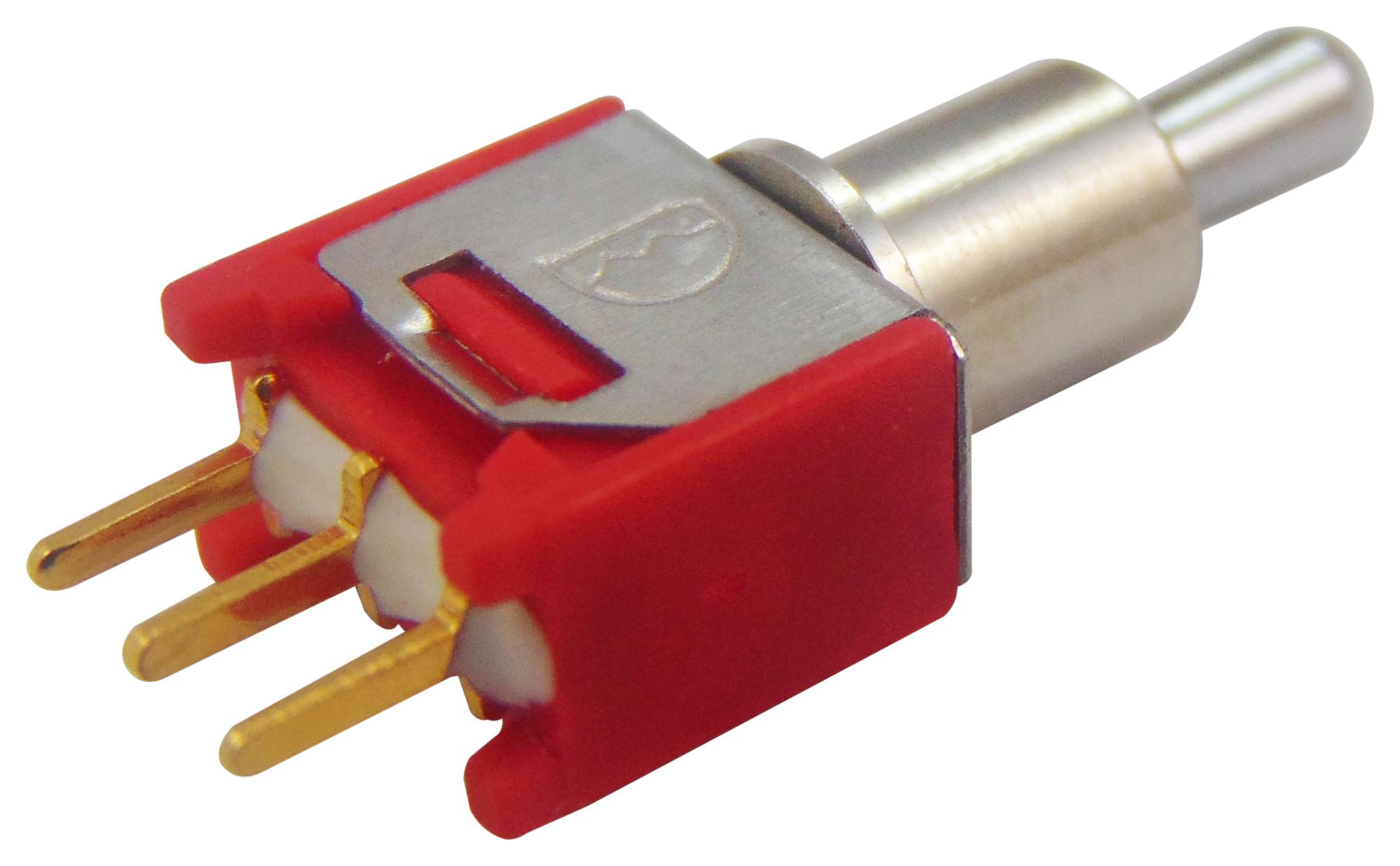

MULTICOMP PRO - 2MS4T2B2M2RE - Toggle Switch, (On)-Off-(On), SPDT, Non Illuminated, 2M, Panel Mount, 100 mA
- Switch Operation: (On)-Off-(On)
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: 2M Series
- Contact Current Max: 100mA
- Switch Mounting: Panel
- Contact Voltage AC Nom: 20V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 20V
- SVHC: No SVHC (15-Jan-2018)
- AC Power: 0.4VA
- Actuation Type: Bat
- Approval Category: UL Recognised
- Bush Length: 5.59mm
- Contact Resistance: 20mohm
- Contact Voltage AC Max: 20VAC
- Contact Voltage DC Max: 20VDC
- DC Power: 0.4VA
- External Depth: 6mm
- External Length / Height: 8.64mm
- External Width: 8.13mm
- Flammability Rating: UL 94V-0
- Insulation Resistance: 1000Mohm
- Lever Length: 5.33mm
- Material: DAP
- No. of Mechanical Operations: 30000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 6mm
- Single Flat Panel Cut-out Diameter: 4.39mm
- Termination Method: Through Hole
