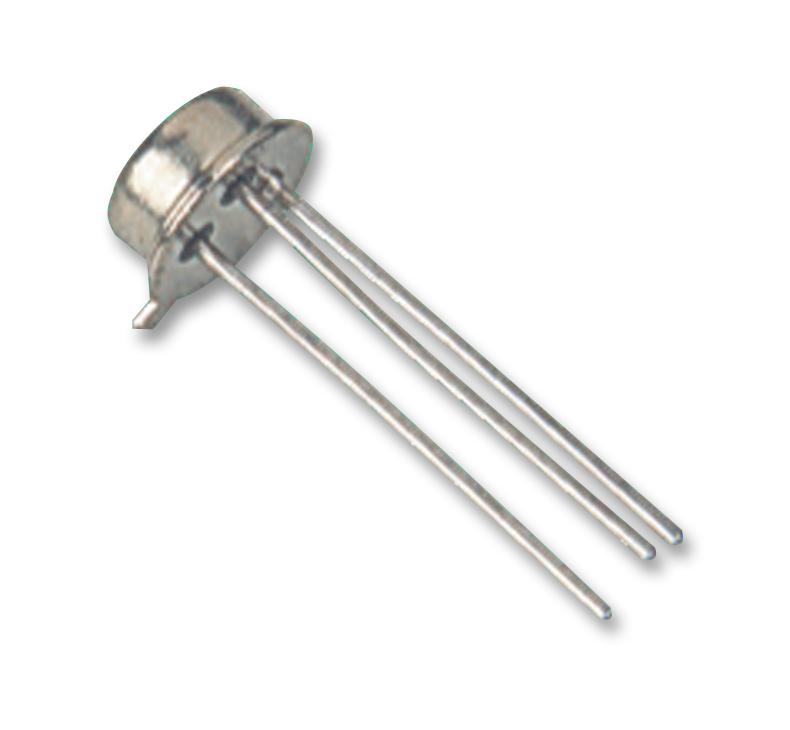

2N3440 Transistor, NPN, TO-39 multicomp Pro

MULTICOMP PROSKU:2N3440 Bestelcode:9207040

Prijs:
Actie prijs€2,96

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (32617 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - 2N3440 - Single Bipolar Transistor (BJT), High Voltage Planar, NPN, 250 V, 1.2 W, 800 mA, TO-39

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 250V
  • Transition Frequency ft: 15MHz
  • Power Dissipation Pd: 5W
  • DC Collector Current: 1A
  • DC Current Gain hFE: 40hFE
  • Transistor Case Style: TO-39
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Av Current Ic: 1A
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Continuous Collector Current Ic Max: 1A
  • Current Ic @ Vce Sat: 50mA
  • Current Ic Continuous a Max: 1A
  • Current Ic hFE: 20mA
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 15MHz
  • Gain Bandwidth ft Typ: 15MHz
  • Hfe Min: 40
  • No. of Transistors: 1
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +200°C
  • Voltage Vcbo: 300V
  • Voltage Vces: 300V
