2US3T1A1M7RE Switch, Ultraminiature, SPDT, On-Off-On multicomp Pro

MULTICOMP PROSKU:2US3T1A1M7RE Bestelcode:1550213

Prijs:
Actie prijs€5,41

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (125 units)

Documenten en downloads

Omschrijving

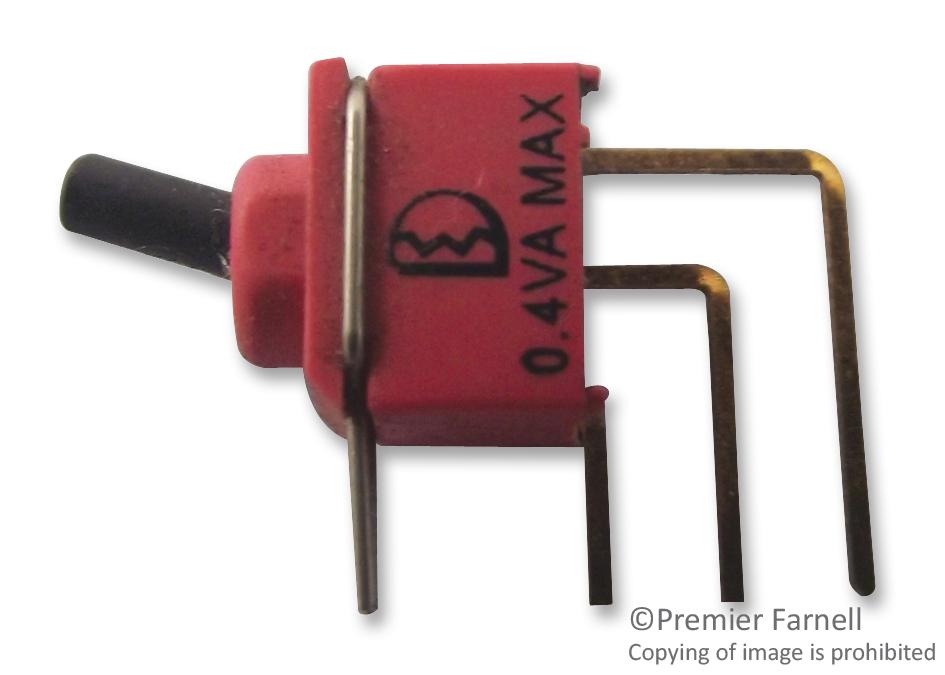

MULTICOMP PRO - 2US3T1A1M7RE - Toggle Switch, On-Off-On, SPDT, Non Illuminated, 2US3, Through Hole, 100 mA

  • Switch Operation: On-Off-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 2US3 Series
  • Contact Current Max: 100mA
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Bush Length: 1.6mm
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 20VAC
  • Contact Voltage DC Max: 20VDC
  • External Depth: 5.08mm
  • External Length / Height: 7mm
  • External Width: 5.3mm
  • Flammability Rating: UL 94V-0
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 500Mohm
  • Lever Length: 3.8mm
  • Material: Glass Filled Nylon
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
  • Termination Method: Through Hole
