3005073 Terminal Block, DIN Rail, 2Pos, 10AWG Phoenix Contact

PHOENIX CONTACTSKU:3005073 Bestelcode:3042947

Prijs:
Actie prijs€5,85

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (88 units)

Documenten en downloads

Omschrijving

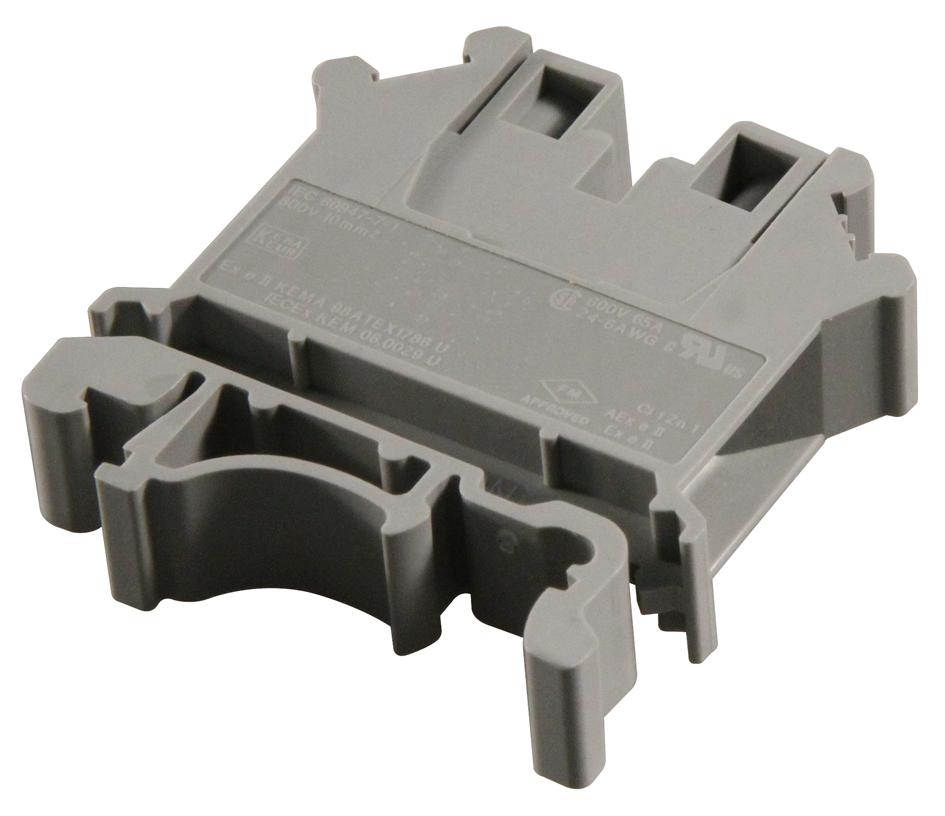

PHOENIX CONTACT - 3005073 - DIN Rail Mount Terminal Block, 2 Ways, 20 AWG, 6 AWG, 16 mm², Screw, 57 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 20AWG
  • Wire Size AWG Max: 6AWG
  • Conductor Area CSA: 16mm²
  • Wire Connection Method: Screw
  • Rated Current: 57A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: UK
  • SVHC: Lead (15-Jan-2019)
  • Approvals / Standards: EN 50281, EN 60979, IEC 60079
  • Colour: Grey
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Width: 10.2mm
  • Flexible Wire Area Size Max: 10mm²
  • Pitch Spacing: 10.2mm
  • Voltage Rating VAC: 800V
  • Wire Area Size Max: 10mm²
  • Wire Area Size Min: 0.5mm²
  • Working Voltage: 800V
