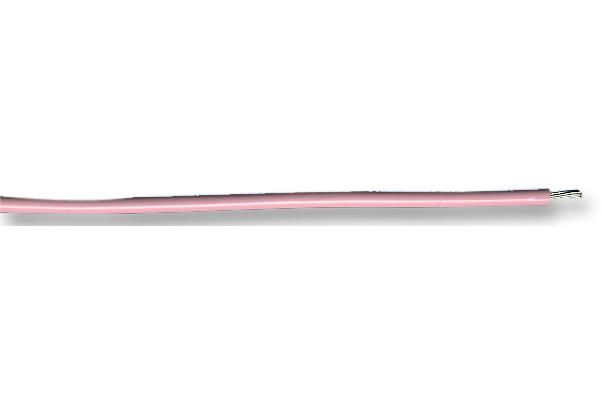

3050 PK001 Wire, UL1007, 24AWG, Pink Alpha Wire

ALPHA WIRESKU:3050 PK001 Bestelcode:1182494

Prijs:
Actie prijs€71,01

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (7 units)

Documenten en downloads

Omschrijving

ALPHA WIRE - 3050 PK001 - Wire, Stranded, Hook Up, UL1007, PVC, Pink, 24 AWG, 0.229 mm², 1000 ft, 305 m

  • Jacket Material: PVC
  • Jacket Colour: Pink
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.229mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 305m
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • External Diameter: 1.45mm
  • Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1007
  • Conductor Make-up: 7 / 32AWG
  • Current Rating: 6A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 1.45mm
  • Secondary Insulation Colour: Pink
  • Secondary Insulation Material: PVC
  • Voltage Rating VAC: 300V
  • Wire Size: 24AWG
