Omschrijving

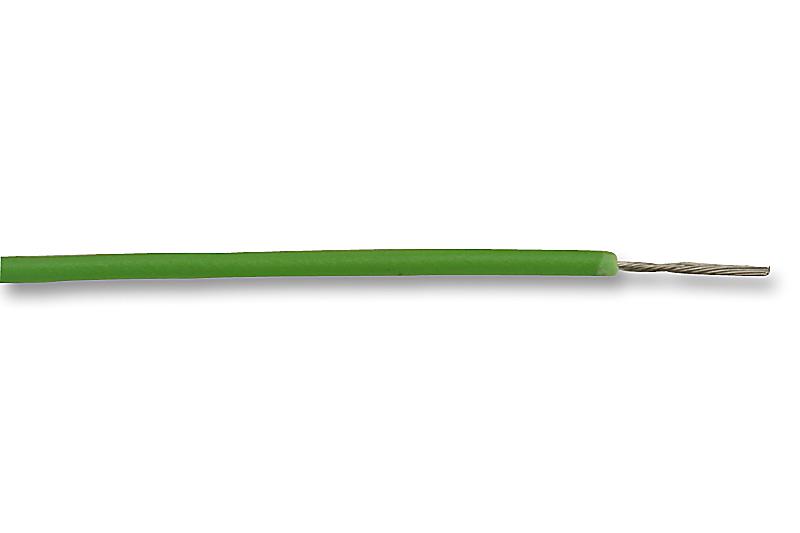

ALPHA WIRE - 3053 GR001 - Wire, Stranded, Hook Up, UL1007, PVC, Green, 20 AWG, 0.51 mm², 1000 ft, 305 m
- Jacket Material: PVC
- Jacket Colour: Green
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.51mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 10 x 30AWG
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- External Diameter: 1.753mm
- Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable UL Style Number: UL1007
- Conductor Make-up: 10/30AWG
- Current Rating: 10A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Outer Diameter: 1.8mm
- Secondary Insulation Colour: Green
- Secondary Insulation Material: PVC
- Voltage Rating VAC: 300V
- Wire Size: 20AWG
