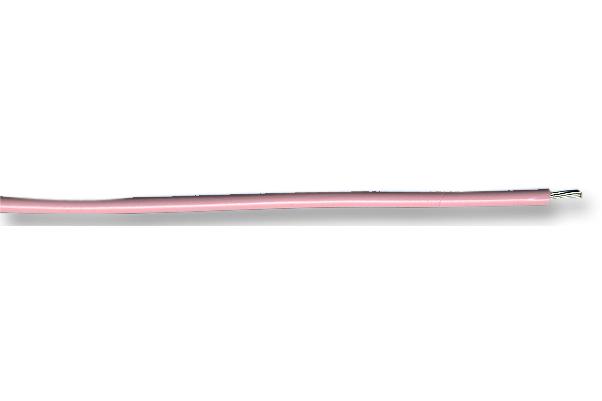

ALPHA WIRE - 3055 PK001 - Wire, Stranded, Hook Up, UL1007, PVC, Pink, 18 AWG, 0.816 mm², 1000 ft, 305 m
- Jacket Material: PVC
- Jacket Colour: Pink
- Wire Gauge: 18AWG
- Conductor Area CSA: 0.816mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 16 x 0.255mm
- Voltage Rating: 300V
- Conductor Material: Copper
- External Diameter: 2.03mm
- Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable UL Style Number: UL1007
- Conductor Make-up: 16 / 30AWG
- Current Rating: 15A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Outer Diameter: 2.03mm
- Secondary Insulation Colour: Pink
- Secondary Insulation Material: PVC
- Voltage Rating VAC: 300V
- Wire Size: 18AWG
