3055 WH001 Wire, UL1007, 18AWG, White, 305M Alpha Wire

ALPHA WIRESKU:3055 WH001 Bestelcode:1182508

Prijs:
Actie prijs€142,03

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (16 units)

Documenten en downloads

Omschrijving

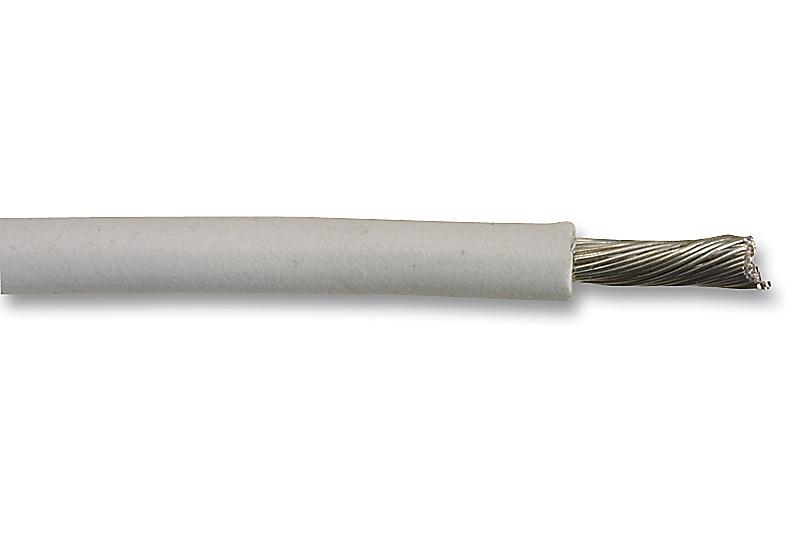

ALPHA WIRE - 3055 WH001 - Wire, Stranded, Hook Up, UL1007, PVC, White, 18 AWG, 0.81 mm², 1000 ft, 305 m

  • Jacket Material: PVC
  • Jacket Colour: White
  • Wire Gauge: 18AWG
  • Conductor Area CSA: 0.81mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 305m
  • No. of Max Strands x Strand Size: 16 x 30AWG
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • External Diameter: 2.03mm
  • Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1007
  • Conductor Make-up: 16 / 30AWG
  • Current Rating: 15A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 2.03mm
  • Secondary Insulation Colour: White
  • Secondary Insulation Material: PVC
  • Voltage Rating VAC: 300V
  • Wire Size: 18AWG
