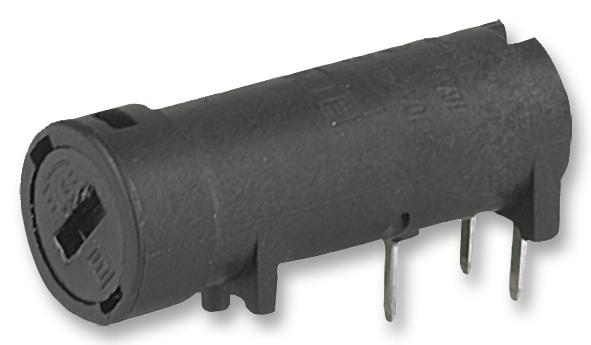

3101.0055 Fuseholder, FPG5, Horizontal, Fingergrip Schurter

SCHURTERSKU:3101.0055 Bestelcode:1222693

Prijs:
Actie prijs€6,26

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1167 units)

Omschrijving

SCHURTER - 3101.0055 - Fuseholder, PCB Mount, 250V, 10A, 5 x 20mm, Solder, Through Hole, Fingergrip Cap,Horizontal,IP40,PC2

  • Fuse Holder Type: PCB Fuse Holder
  • Fuse Current: 16A
  • Fuse Size Held: 5mm x 20mm
  • Holder Terminals: Through Hole
  • No. of Fuses: 1Fuses
  • Product Range: FPG5 Series
  • Voltage Rating VAC: 250V
  • Voltage Rating V DC: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: PC2
  • Approvals @ 10A: SEV, VDE, SEMKO
  • Approvals @ 16A: UL, CSA
  • Body Diameter: 12.5mm
  • Colour: Black
  • Contact Resistance: 5mohm
  • Current Rating: 10A
  • External Depth: 12.7mm
  • External Length / Height: 37mm
  • Fixing Centres: 12.7mm
  • Fixing Centres LxW: 7.62mm X 5.08mm
  • Fixing Hole Diameter: 1.3mm
  • Flammability Rating: UL94V-0
  • Fuse Size Metric: 5mm x 20mm
  • IP / NEMA Rating: IP40
  • Material: PBTP thermoplastic
  • Mounting Orientation: Vertical
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
