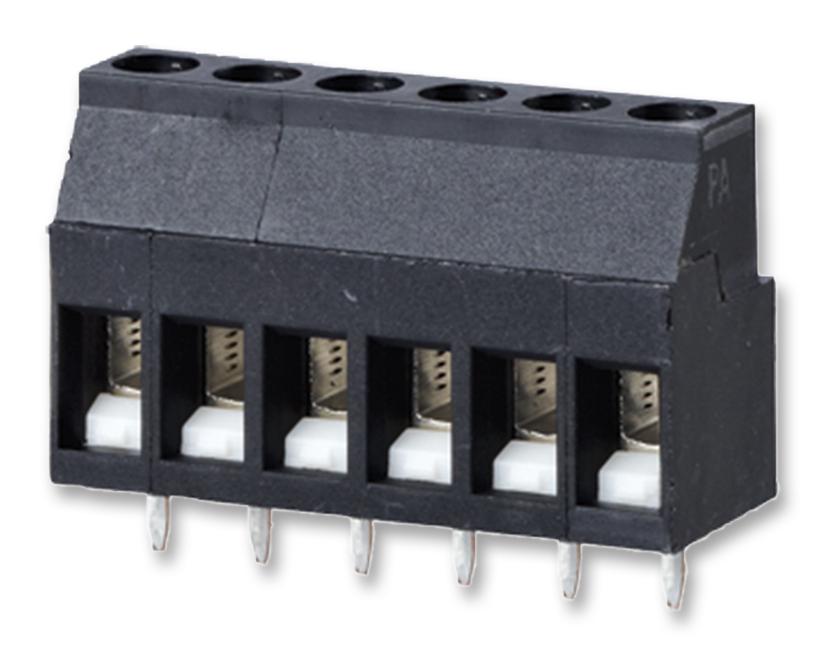

METZ CONNECT - 31071106 - Wire-To-Board Terminal Block, 5 mm, 6 Ways, 22 AWG, 12 AWG, 2.5 mm², Screw
- Pitch Spacing: 5mm
- No. of Positions: 6Ways
- Wire Size AWG Min: 22AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 24A
- Rated Voltage: 250V
- Block Orientation: Through Hole Right Angle
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Brass
- Contact Plating: Nickel Plated Contacts
