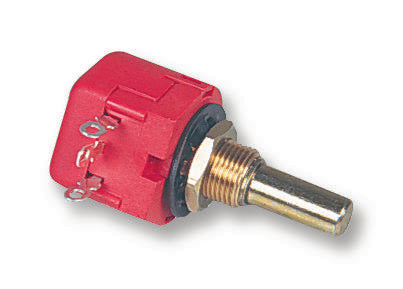

3109605611 Potentiometer, 500R KYOCERA Avx

KYOCERA AVXSKU:3109605611 Bestelcode:1219020

Prijs:
Actie prijs€34,26

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (325 units)

Documenten en downloads

Omschrijving

KYOCERA AVX - 3109605611 - Rotary Potentiometer, 500 ohm, 1 Turns, Linear, 1 W, ± 10%, ABW1

  • Track Resistance: 500ohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 1W
  • Resistance Tolerance: ± 10%
  • Product Range: ABW1 Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Rotary
  • Shaft Length: 25.4mm
  • SVHC: No SVHC (17-Dec-2015)
  • Body Diameter: 23mm
  • Electrical Angular Rotation Tolerance +: 5°
  • Electrical Angular Rotation Tolerance -: 5°
  • External Length / Height: 17.45mm
  • Full Power Rating Temperature: 40°C
  • Insulation Resistance: 1000Mohm
  • Isolation Voltage: 1000V
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 90°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +90°C
  • Resistance: 500ohm
  • Resistor Element Material: Wirewound
  • Rotation Electrical Angle: 265°
  • Rotation Mechanical Angle: 285°
  • Temperature Coefficient: ± 40ppm/°C
  • Terminal Resistance: 0.2ohm
  • Termination Type: Solder
  • Thread Size: 3/8" 32 T.P.I
  • Tolerance +: 10%
  • Tolerance -: 10%
