3302-50 RIBBON CABLE, 50WAY, PER M 3M

3MSKU:3302-50 Bestelcode:1207424

Prijs:
Actie prijs€20,88

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (42 units)

Documenten en downloads

Omschrijving

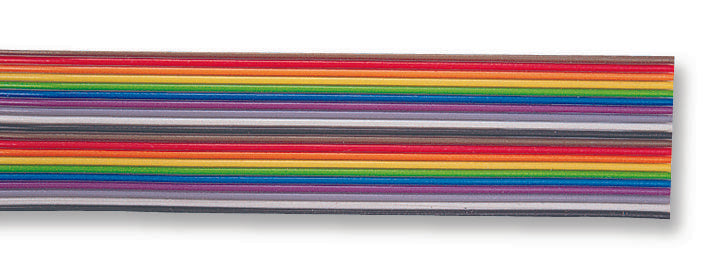

3M - 3302-50 - Ribbon Cable, Colour Coded Flat, Per M, Unscreened, 50 Core, 28 AWG, 0.072 mm²

  • Cable Shielding: Unscreened
  • No. of Cores: 50Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.072mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Multi-coloured
  • Cable Width: 63.5mm
  • No. of Max Strands x Strand Size: 7 x 36AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3302 Series
  • Approval Bodies: UL
  • Approval Category: Style 2776
  • Cable Type: Flat (Ribbon)
  • Cable UL Style Number: UL2776
  • Capacitance: 46.2pF/m
  • Colour: 10 Colour Repeat
  • Conductor Make-up: 7/36AWG
  • Current Temperature: 80°C
  • Flammability Rating: VW-1
  • Impedance: 105ohm
  • Inductance: 0.49µH/m
  • Insulation Resistance: 1000Mohm
