3319-14 RIBBON CABLE, HIGH FLEX, 14WAY, PER M 3M

3MSKU:3319-14 Bestelcode:1207427

Prijs:
Actie prijs€24,96

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (11 units)

Documenten en downloads

Omschrijving

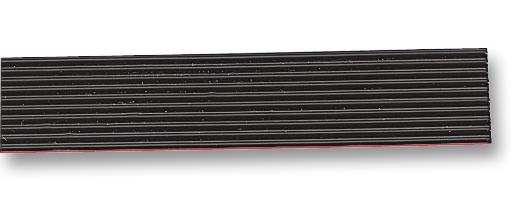

3M - 3319-14 - Ribbon Cable, Round Conductor Flat High Flex, Unscreened, 14 Core, 28 AWG, 0.093 mm²

  • Cable Shielding: Unscreened
  • No. of Cores: 14Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.093mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Black
  • Cable Width: 17.78mm
  • No. of Max Strands x Strand Size: 19 x 40AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Silver Plated Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3319 Series
  • Approval Bodies: UL
  • Cable Type: Flat (Ribbon)
  • Cable UL Style Number: UL2651
  • Capacitance: 43.6pF/m
  • Colour: Black
  • Conductor Make-up: 19/40AWG
  • Conductor Plating: Silver
  • Flammability Rating: VW-1
  • Impedance: 107ohm
  • Inductance: 0.49µH/m
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
