3319-26 Ribbon Cable, High Flex, 26WAY 3M

3MSKU:3319-26 Bestelcode:1166726

Prijs:
Actie prijs€904,23

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 4 producten leverbaar

Documenten en downloads

Omschrijving

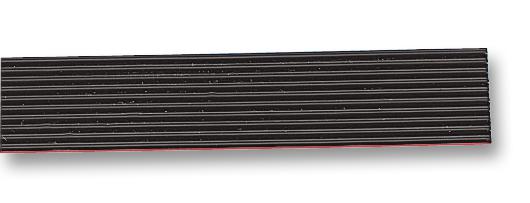

3M - 3319-26 - Ribbon Cable, Round Conductor Flat High Flex, Unscreened, 26 Core, 28 AWG, 0.093 mm², 100 ft

  • Cable Shielding: Unscreened
  • No. of Cores: 26Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.093mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Black
  • Cable Width: 33.02mm
  • No. of Max Strands x Strand Size: 19 x 40AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Silver Plated Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3319 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: UL
  • Cable Type: Flat (Ribbon)
  • Cable UL Style Number: UL2651
  • Capacitance: 43.6pF/m
  • Colour: Black
  • Conductor Make-up: 19/40AWG
  • Conductor Plating: Silver
  • Flammability Rating: VW-1
  • Impedance: 107ohm
  • Inductance: 0.49µH/m
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
