Omschrijving

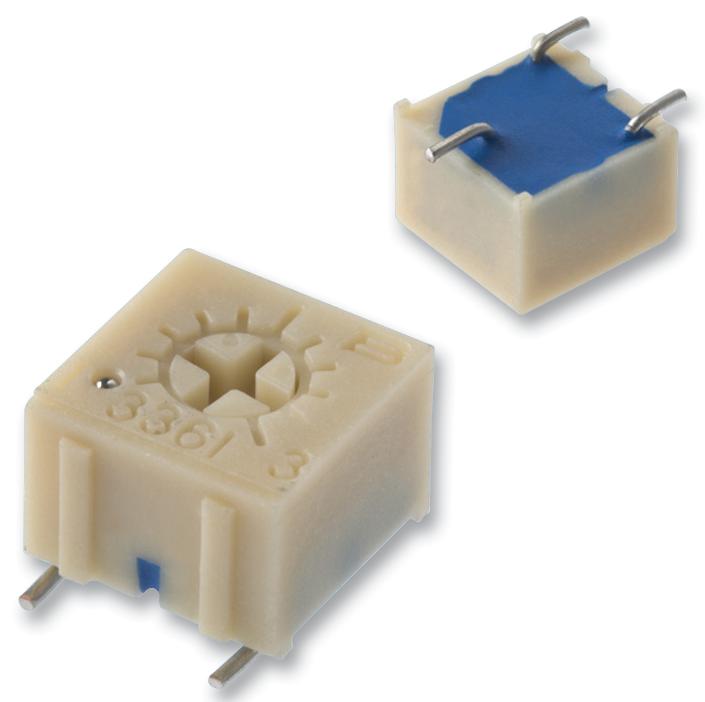

BOURNS - 3361P-1-103GLF - Trimpot, Single Turn, Cermet, Top Adjust, 10 kohm, Surface Mount, 1 Turns
- Track Resistance: 10kohm
- No. of Turns: 1Turns
- Potentiometer Mounting: Surface Mount Device
- Product Range: Trimpot 3361 Series
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- External Depth: 7.04mm
- External Length / Height: 5.21mm
- External Width: 6.71mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Element Material: Cermet
- Voltage Rating: 300V
