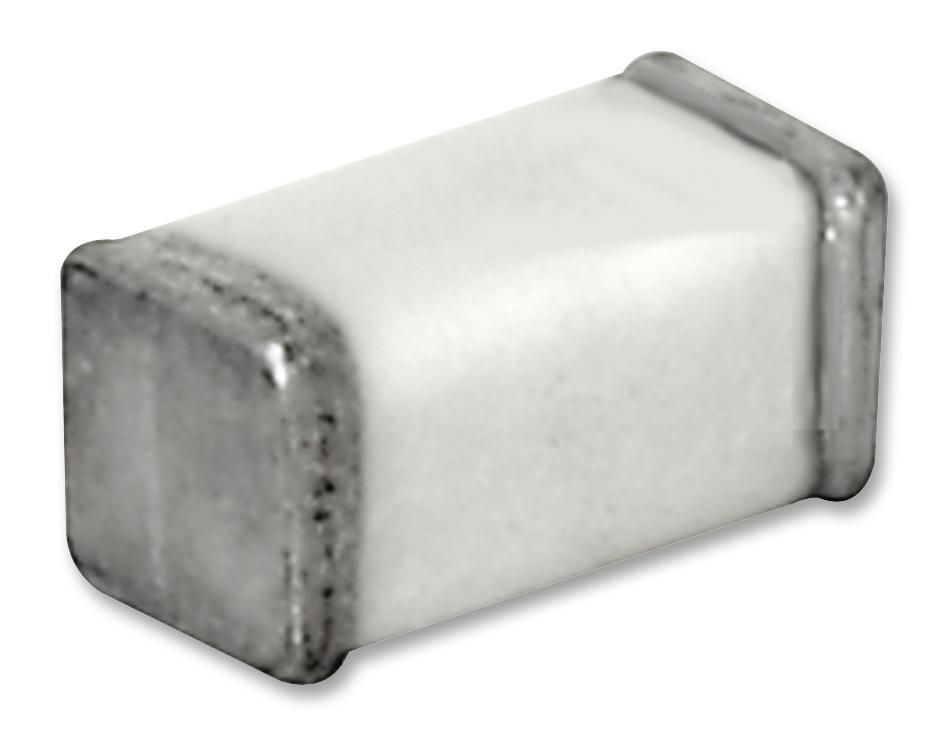

SCHURTER - 3410002101 - Fuse, Surface Mount, 200 mA, Very Fast Acting, 125 VAC, 125 VDC, 1206 (3216 Metric), MGA
- Fuse Current: 200mA
- Product Range: MGA Series
- Voltage Rating VAC: 125VAC
- Voltage Rating V DC: 125VDC
- Blow Characteristic: Very Fast Acting
- Fuse Case Style: 1206
- Breaking Capacity Current AC: 50A
- Breaking Capacity Current DC: 300A
- SVHC: Lead (15-Jan-2019)
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Breaking Capacity: 50A @ 125V AC, 300A @ 125V DC
- External Depth: 1.52mm
- External Length / Height: 3.05mm
- External Width: 1.52mm
- Fuse Type Blowing Characteristic: Ultra Fast
- Lead Length: 0.25mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Tape Width: 8mm
- Voltage Drop @ Rated Current: 202mV
