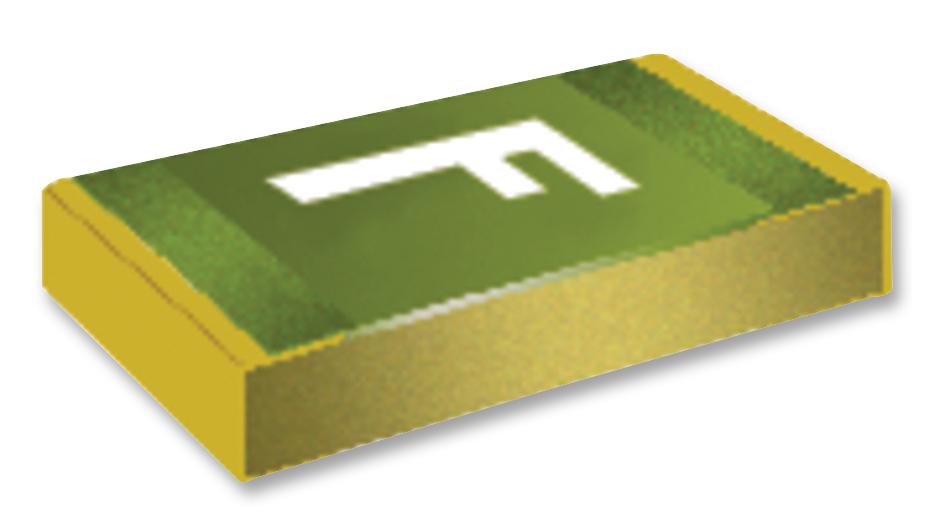

3413.0114.22 Fuse, 0.75A, 63VDC, SMT Schurter

SCHURTERSKU:3413.0114.22 Bestelcode:7785720

Prijs:
Actie prijs€1,22

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (93 units)

Omschrijving

SCHURTER - 3413.0114.22 - Fuse, Surface Mount, 750 mA, Very Fast Acting, 32 VAC, 63 VDC, 1206, USF 1206

  • Fuse Current: 750mA
  • Product Range: USF 1206 Series
  • Voltage Rating VAC: 32VAC
  • Voltage Rating V DC: 63VDC
  • Blow Characteristic: Very Fast Acting
  • Fuse Case Style: 1206
  • Breaking Capacity Current AC: 50A
  • Breaking Capacity Current DC: 50A
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL
  • Breaking Capacity: 50A @ 32V AC / 63V DC
  • Case Material: Glass epoxy
  • Current Rating: 750mA
  • External Depth: 1.6mm
  • External Length / Height: 0.6mm
  • External Width: 3.2mm
  • Fuse Type Blowing Characteristic: Super Quick
  • Internal Resistance: 120mohm
  • Operating Temperature Max: 90°C
  • Operating Temperature Min: -55°C
