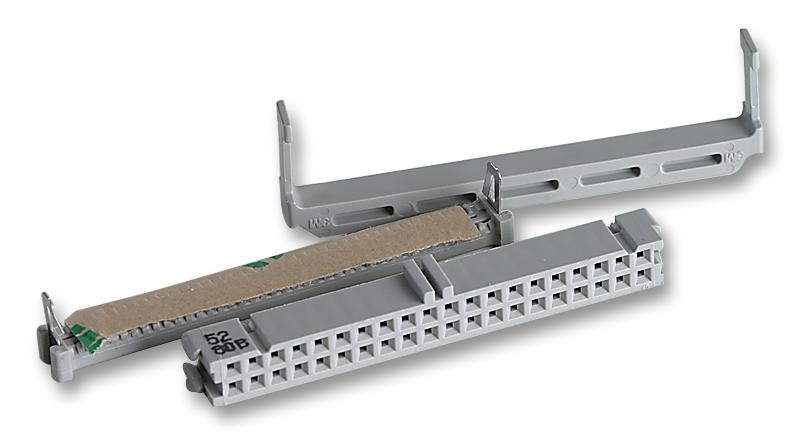

Omschrijving
- Pitch Spacing: 2.54mm
- No. of Contacts: 40Contacts
- Gender: Receptacle
- Product Range: 3000 Series
- Contact Termination Type: IDC / IDT
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- Approval Bodies: BT
- Colour: Grey
- Contact Current Rating: 1A
- Contact Resistance: 20mohm
- Cut Thickness for PCBs Max: 1.6mm
- Flammability Rating: UL94V-0
- IDC Cable Pitch: 0.05"
- Insulation Resistance: 1000Mohm
- Material: Glass Filled Polyester (PBT)
- No. of Mating Cycles: 200
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 0.89mm
- Polarisation Type: Bump
- Row Pitch: 2.54mm
- Working Voltage: 350V
