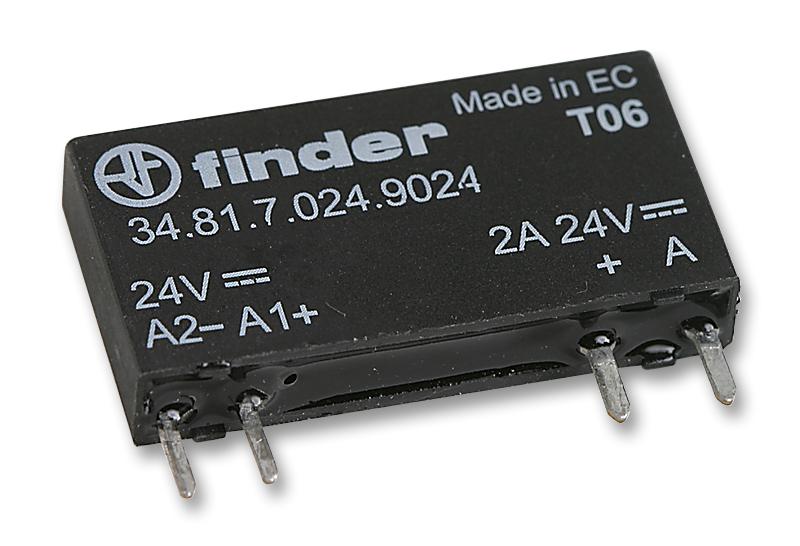

34.81.7.024.9024 SSR, 2A, 24Vdc Finder

FINDERSKU:34.81.7.024.9024 Bestelcode:1169344

Prijs:
Actie prijs€56,69

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (769 units)

Documenten en downloads

Omschrijving

FINDER - 34.81.7.024.9024 - Solid State Relay, 34 Series, Ultra-Slim, SPST-NO, 6 A, 36 VDC, PCB, Through Hole, DC Switch

  • Contact Configuration: SPST-NO
  • Load Current: 6A
  • Operating Voltage Max: 36VDC
  • Relay Mounting: PCB
  • Relay Terminals: Through Hole
  • Switching Mode: DC Switch
  • Operating Voltage Min: 16.8VDC
  • Control Voltage Min: 1.5VDC
  • Control Voltage Max: 24VDC
  • Product Range: 34 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL Recognised
  • Control Current Typ: 7mA
  • Control Voltage DC Max: 30VDC
  • Control Voltage DC Min: 16VDC
  • Control Voltage Range: 16V DC to 30V DC
  • Control Voltage Type: DC
  • External Depth: 5mm
  • External Length / Height: 15.5mm
  • External Width: 28mm
  • Input Impedance: 3200ohm
  • Input Voltage Max: 30V
  • Input Voltage Min: 16V
  • Isolation Voltage: 2.5kV
  • Load Current RMS Max: 20A
  • Load Voltage DC Max: 24V
  • Load Voltage DC Min: 1.5VDC
  • Load Voltage Range: 1.5V DC to 24V DC
  • Must Release Voltage: 10V
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -20°C
  • Operating Voltage Range: 1.5V DC to 24V DC
  • RMS Load Current Min: 2A
  • RMS Load Voltage Max: 24V
