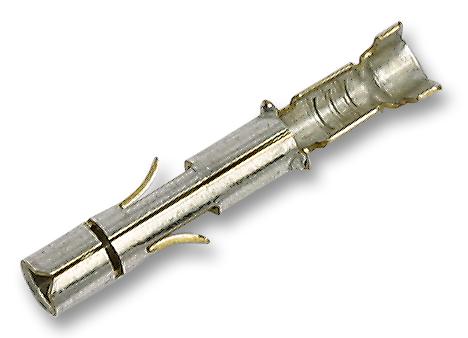

AMP - TE CONNECTIVITY - 350923-3 - Contact, Universal MATE-N-LOK, Socket, Crimp, 10 AWG, Tin Plated Contacts
- Product Range: Universal MATE-N-LOK Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 10AWG
- Contact Plating: Tin Plated Contacts
- For Use With: Universal MATE-N-LOK Series Connectors
- Wire Size AWG Min: 12AWG
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 5.1mm
- Cable Diameter Min: 3.3mm
- Contact Size: 10
- Contact Termination: Crimp
- Current Rating: 19A
- Gender: Receptacle
- Insulation Diameter Max: 5.1mm
- Insulation Diameter Min: 3.3mm
- Material: Phosphor Bronze
- Pack Quantity: 1
- Voltage Rating VAC: 600V
- Wire Area Size Max: 4.9mm²
- Wire Area Size Min: 3.1mm²
- Wire Size: 12AWG
- Wire Size (AWG): 12AWG to 10AWG
