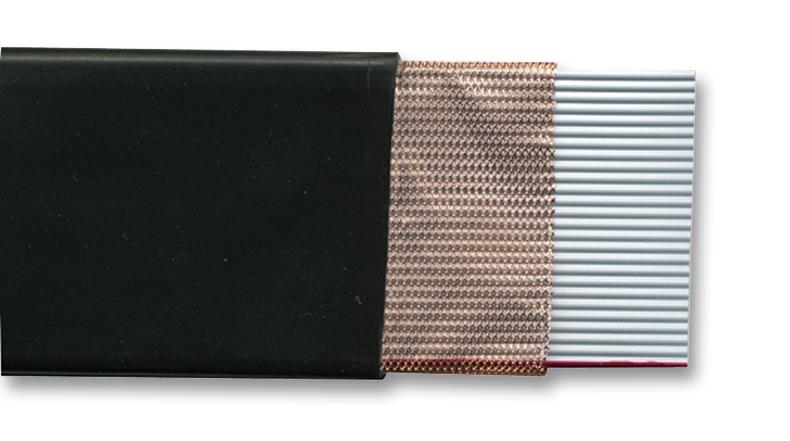

3M - 3517-20 - Ribbon Cable, Jacketed Flat, Screened, 20 Core, 28 AWG, 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Cores: 20Core
- Wire Gauge: 28AWG
- Conductor Area CSA: -
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Black
- Cable Width: 28.7mm
- No. of Max Strands x Strand Size: 7 x 36AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 50V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Jacketed Flat Ribbon Cable
- Product Range: 3517 Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Approval Category: Style 20879
- Cable Type: Shielded Flat (Ribbon)
- Capacitance: 41.7pF/m
- Colour: Grey
- Conductor Make-up: 7/36AWG
- Current Rating: 1A
- Flammability Rating: CL2
- Impedance: 119ohm
- Inductance: 0.62µH/m
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
