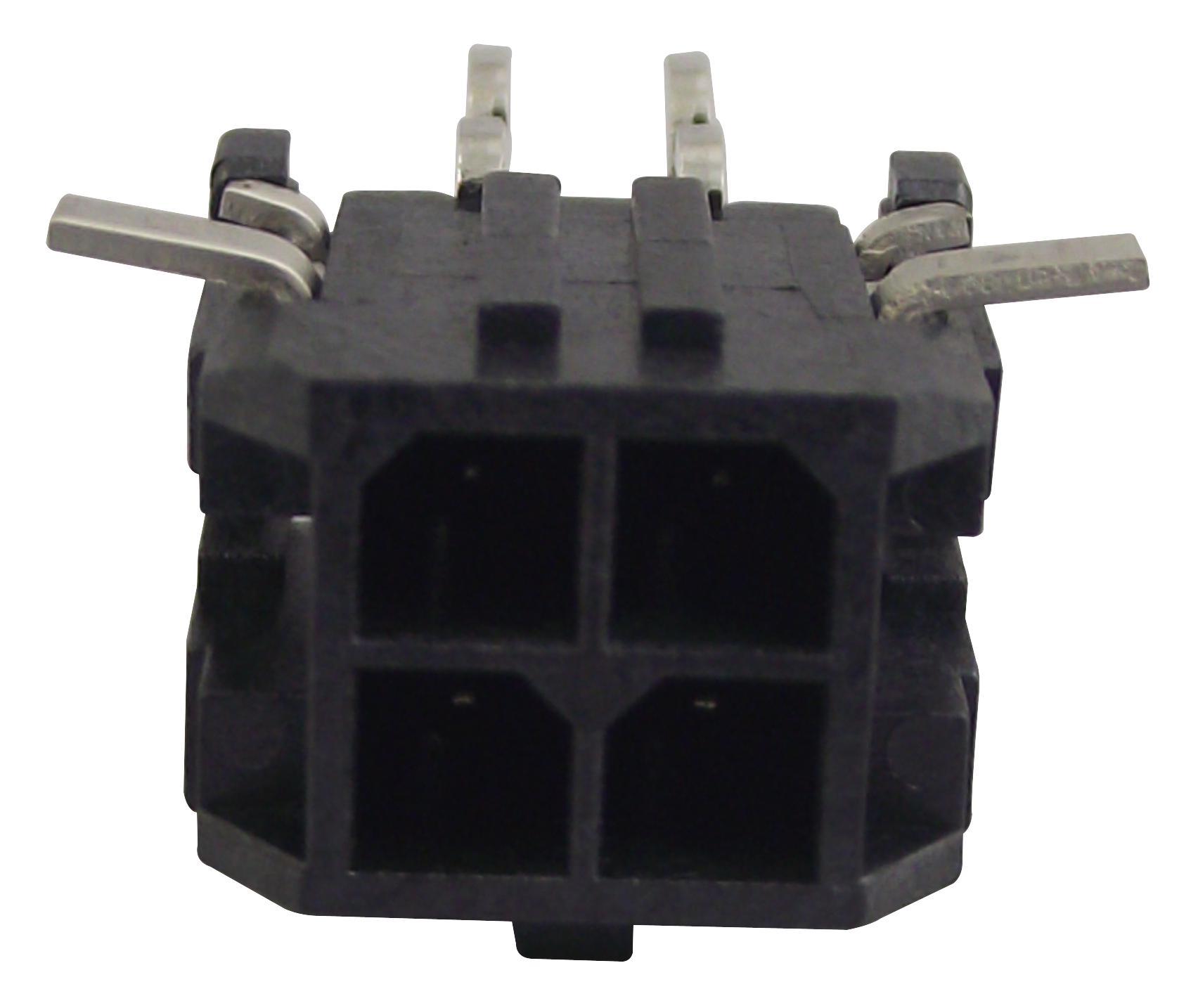

353630460 Connector, Header, 4Pos, 1ROW, 2mm Molex

MOLEXSKU:353630460 Bestelcode:9289453

Prijs:
Actie prijs€0,91

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (872 units)

Omschrijving

MOLEX - 353630460 - Pin Header, Right Angle, Signal, 2 mm, 1 Rows, 4 Contacts, Through Hole Right Angle, Sherlock 35363

  • Pitch Spacing: 2mm
  • No. of Contacts: 4Contacts
  • Gender: Header
  • Product Range: Sherlock 35363 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance Max: 20mohm
  • Current Max: 2A
  • Current Rating: 2A
  • External Depth: 8.55mm
  • External Length / Height: 3.5mm
  • External Width: 12.3mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Voltage Rating V DC: 125V
  • Voltage Rating VAC: 125V
  • Withstand Voltage: 500VAC
