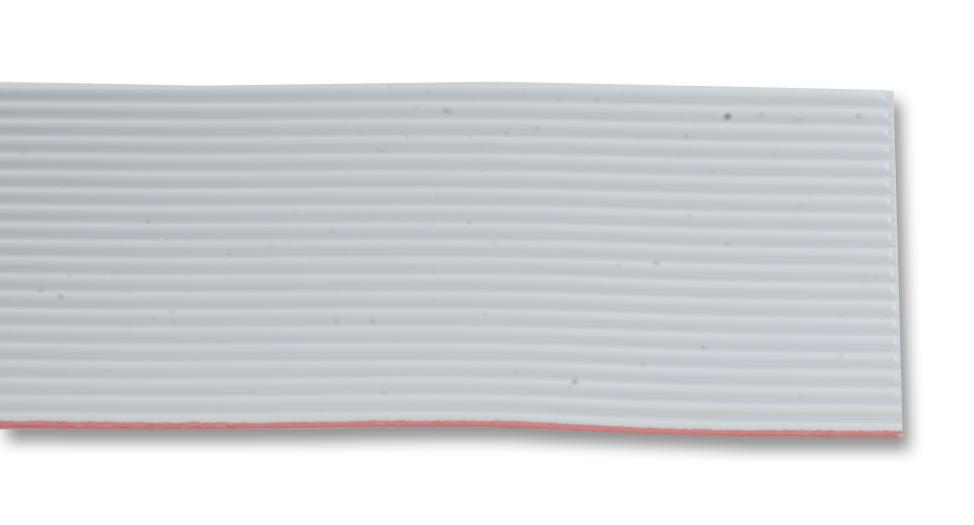

3M - 3539-20 - Ribbon Cable, Round Conductor Flat Medium Flex, Unscreened, 20 Core, 28 AWG, 0.093 mm²
- Cable Shielding: Unscreened
- No. of Cores: 20Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.093mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Grey
- Cable Width: 25.4mm
- No. of Max Strands x Strand Size: 19 x 40AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: 3539 Series
- Cable Type: Flat (Ribbon)
- Cable UL Style Number: UL2651
- Capacitance: 43.8pF/m
- Colour: Grey
- Conductor Make-up: 19/0.079mm
- Impedance: 106ohm
- Inductance: 0.49µH/m
- Insulation Resistance: 10000Mohm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
- Velocity of Propagation (%): 72%
