3549S-1AA-202A Precision Pot-7/8" 22mm Dia 10T WW Bourns

BOURNSSKU:3549S-1AA-202A Bestelcode:1470224

Prijs:
Actie prijs€40,57

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (25 units)

Documenten en downloads

Omschrijving

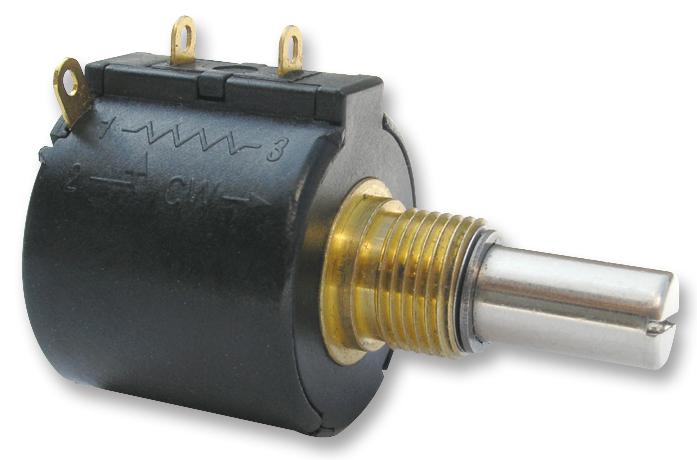

BOURNS - 3549S-1AA-202A - Rotary Potentiometer, Wirewound, 2 kohm, 10 Turns, Linear, 2 W, ± 3%, 3549S

  • Track Resistance: 2kohm
  • No. of Turns: 10Turns
  • Track Taper: Linear
  • Power Rating: 2W
  • Resistance Tolerance: ± 3%
  • Product Range: 3549S Series
  • Potentiometer Mounting: Bushing
  • Shaft Diameter: 6.34mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 12.7mm
  • SVHC: Lead (15-Jan-2019)
  • Body Diameter: 22.479mm
  • Bush Thread Length: 6.396mm
  • External Length / Height: 19.812mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Resistance: 2kohm
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 50ppm/°C
  • Thread Size: 3/8" 32-UNEF
