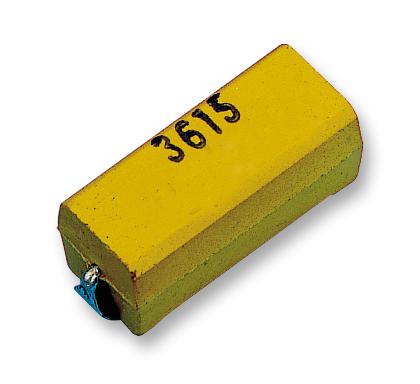

3615A100K Inductor, 10UH, 620MA, 42MHZ, SMD SIGMAINDUCTORS - Te Connectivity

SIGMAINDUCTORS - TE CONNECTIVITYSKU:3615A100K Bestelcode:1174511

Prijs:
Actie prijs€14,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2583 units)

Documenten en downloads

Omschrijving

SIGMAINDUCTORS - TE CONNECTIVITY - 3615A100K - Wirewound Inductor, 10 µH, 0.6 ohm, 42 MHz, 620 mA, 13mm x 5mm x 5.3mm, 3615

  • Inductance: 10µH
  • RMS Current (Irms): 620mA
  • Inductor Construction: Wirewound
  • Saturation Current (Isat): -
  • Product Range: 3615 Series
  • Power Inductor Case: 13mm x 5mm x 5.3mm
  • DC Resistance Max: 0.6ohm
  • Inductance Tolerance: ± 10%
  • Inductance Measurement Frequency: 7.9MHz
  • Inductor Type: Power Inductor
  • No. of Pins: 2Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Q Factor: 35
  • Q Test Frequency: 7.9MHz
  • Reel Quantity: 1000
  • Resonant Frequency: 42MHz
  • Self Resonant Frequency Min: 42MHz
  • Tape Width: 24mm
  • Termination Type: Surface Mount Device
