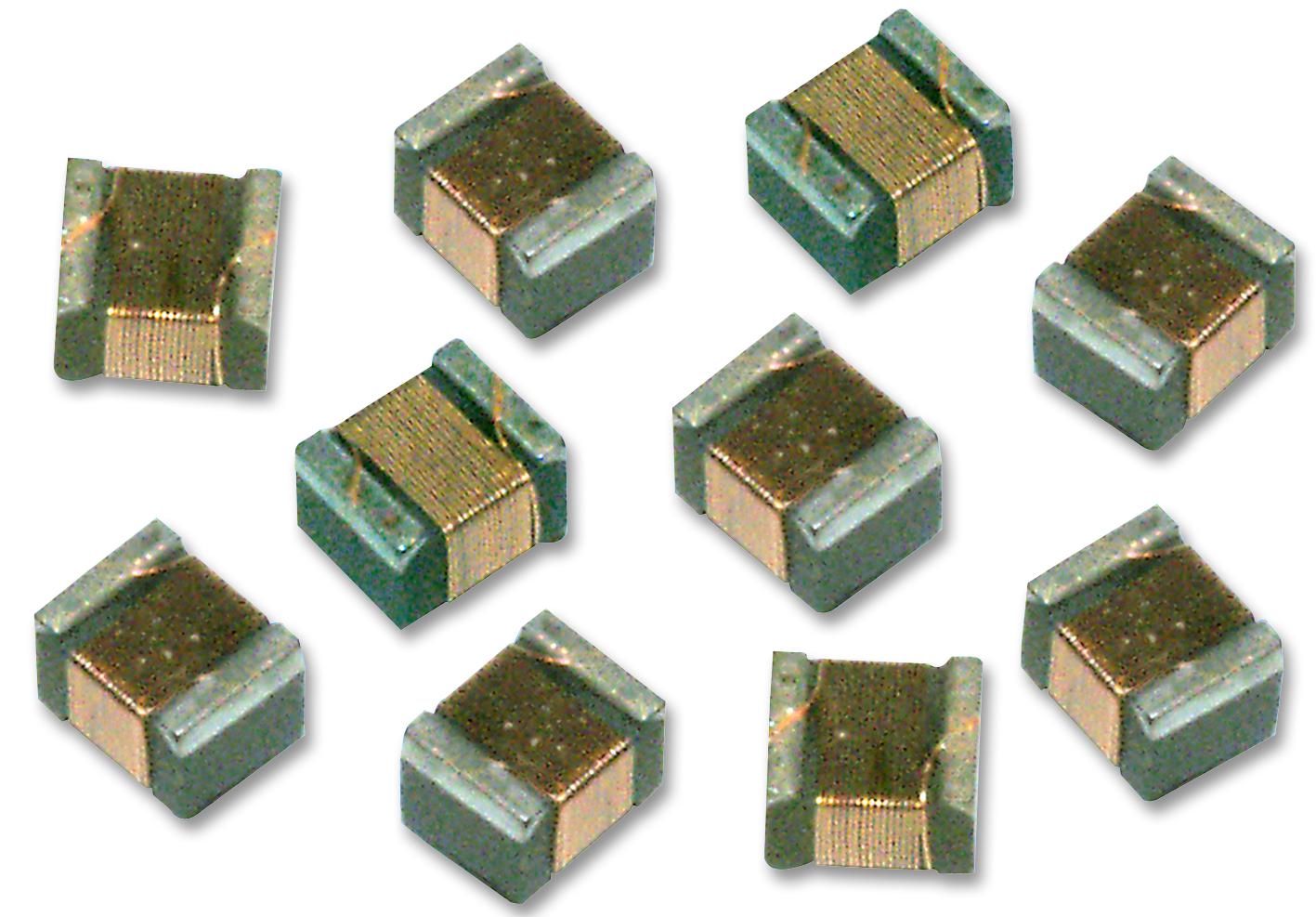

TE CONNECTIVITY - 36502CR39JTDG - Wirewound Inductor, 390 nH, 1.12 ohm, 500 MHz, 470 mA, 1008 [2520 Metric], 36502C
- Inductance: 390nH
- Product Range: 36502C Series
- DC Current Rating: 470mA
- High Frequency Inductor Case: 1008 [2520 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 1.12ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 500MHz
- External Depth: 2.1mm
- External Length / Height: 2.92mm
- External Width: 2.79mm
- Inductor Case Style: 1008 [2520 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
