3659-37 Ribbon Cable, RND/Flat, 37WAY, 30.5m 3M

3MSKU:3659-37 Bestelcode:297148

Prijs:
Actie prijs€451,59

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

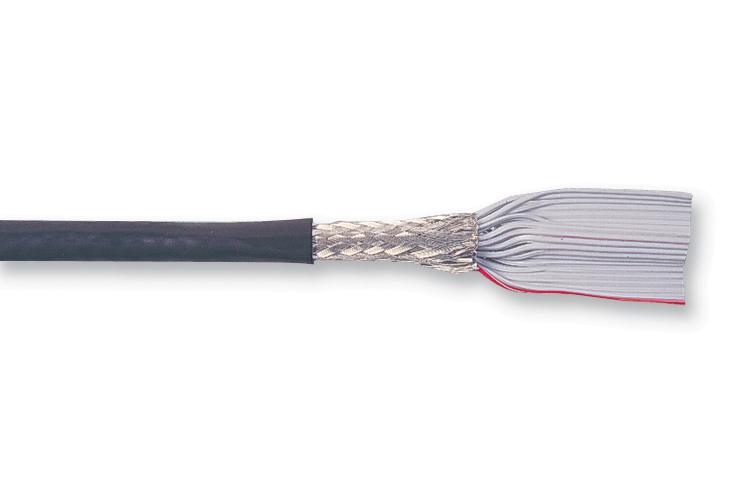

3M - 3659-37 - Ribbon Cable, Round Jacketed Flat, Screened, 37 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m

  • Cable Shielding: Screened
  • No. of Cores: 37Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.072mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Black
  • Cable Width: 45.7mm
  • No. of Max Strands x Strand Size: 7 x 36AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Round Jacketed Flat Ribbon Cable
  • Product Range: 3659 Series
  • Approval Bodies: UL
  • Cable Type: Shielded Round to Flat
  • Cable UL Style Number: UL20267
  • Capacitance: 90.9pF/m
  • Colour: Grey
  • Conductor Make-up: 7/36AWG
  • Impedance: 62ohm
  • Inductance: 0.43µH
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 80°C
  • Screen Type Primary: Aluminised Polyester Tape
  • Screen Type, Secondary: Tinned copper braid
  • Secondary Insulation Colour: Black
  • Secondary Insulation Material: PVC
