3749-50 Ribbon Cable, 50WAY, 30.5m 3M

3MSKU:3749-50 Bestelcode:1207753

Prijs:
Actie prijs€249,44

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 3 producten leverbaar

Documenten en downloads

Omschrijving

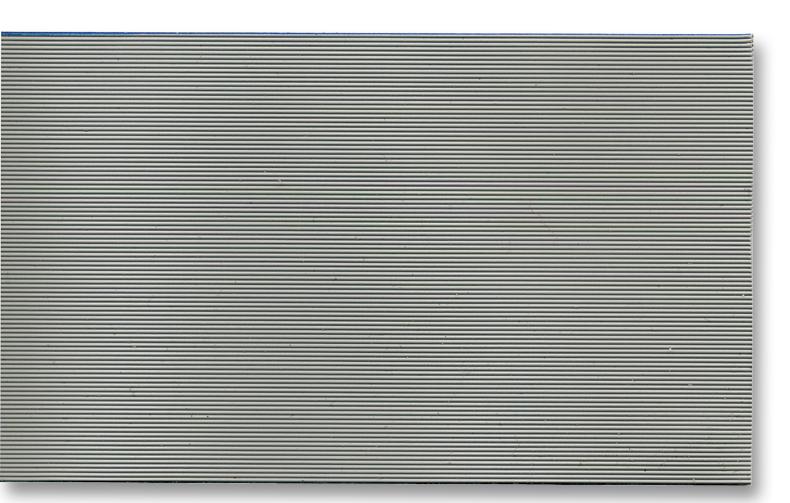

3M - 3749-50 - Ribbon Cable, Round Conductor, Unscreened, 50 Core, 30 AWG, 0.051 mm², 100 ft, 30.5 m

  • Cable Shielding: Unscreened
  • No. of Cores: 50Core
  • Wire Gauge: 30AWG
  • Conductor Area CSA: 0.051mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Grey
  • Cable Width: 31.75mm
  • No. of Max Strands x Strand Size: Solid
  • Pitch Spacing: 0.635mm
  • Voltage Rating: 50V
  • Conductor Material: Tinned Copper
  • Jacket Material: TPE
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3749 Series
  • Approval Bodies: UL
  • Approval Category: Style 20297
  • Cable Type: Flat (Ribbon)
  • Capacitance: 54.1pF/m
  • Colour: Grey
  • Conductor Make-up: 1/30AWG
  • Current Rating: 1A
  • Flammability Rating: VW-1
  • Impedance: 90ohm
  • Inductance: 0.43µH/m
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
