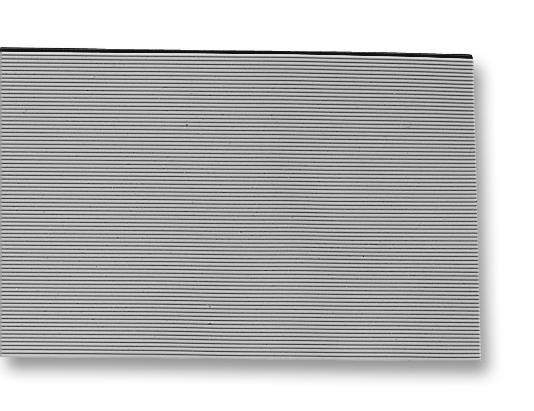

3M - 3801/14 - Ribbon Cable, Round Conductor Flat, Unscreened, 14 Core, 26 AWG, 100 ft, 30.48 m
- Cable Shielding: Unscreened
- No. of Cores: 14Core
- Wire Gauge: 26AWG
- Conductor Area CSA: -
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.48m
- Jacket Colour: Grey
- Cable Width: 17.78mm
- No. of Max Strands x Strand Size: 7 x 34AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: 3801 Series
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Flat (Ribbon)
- Capacitance: 53.1pF/m
- Impedance: 89ohm
- Inductance: 0.43µH/m
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
- Velocity of Propagation (%): 71%
