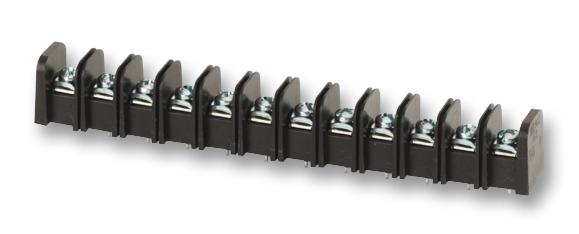

38630-7810 TERMINAL BLOCK, BARRIER, 10WAYS, 12AWG MOLEX

MOLEXSKU:38630-7810 Bestelcode:9974130

Prijs:
Actie prijs€15,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5 units)

Documenten en downloads

Omschrijving

MOLEX - 38630-7810 - PCB Mount Barrier Terminal Block, 11.13 mm, 1 Row, 10 Ways, 24 AWG, 12 AWG, 25 A

  • Pitch Spacing: 11.13mm
  • No. of Rows: 1 Row
  • No. of Positions: 10Ways
  • Wire Size AWG Min: 24AWG
  • Wire Size AWG Max: 12AWG
  • Rated Current: 25A
  • Rated Voltage: 600V
  • Product Range: 38630 Series
  • Approval Bodies: CSA, UL
  • Colour: Black
  • Connector Mounting: PCB Mount
  • Connector Type: Terminal Block, Barrier
  • Contact Material: Brass
  • Contact Plating: Tin Plated Contacts
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • No. of Rows: 1Rows
  • Operating Temperature Max: 110°C
  • Voltage Rating VAC: 600V
  • Wire Area Size Max: 3.3mm²
  • Withstand Voltage: 10500V
  • Working Voltage: 600V
