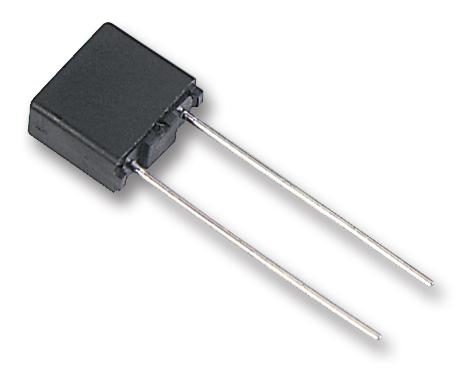

LITTELFUSE - 39505000000 - Fuse, PCB Leaded, 500 mA, 125 VAC, TE5, Fast Acting, Radial Leaded
- Fuse Current: 500mA
- Voltage Rating VAC: 125VAC
- Product Range: TE5 Series
- Voltage Rating V DC: -
- Blow Characteristic: Fast Acting
- Fuse Case Style: Radial Leaded
- Breaking Capacity Current AC: 100A
- Breaking Capacity Current DC: -
- Breaking Capacity: 100A @ 125V AC
- Case Material: Thermoplastic
- External Depth: 4mm
- External Length / Height: 8mm
- External Width: 8.5mm
- Flammability Rating: UL94V-0
- Fuse Breaking Capacity Voltage AC: 125V
- Fuse Mounting: Through Hole
- Fuse Size Code: TE5
- Fuse Size Imperial: 0.33" x 0.3"
- Fuse Size Metric: 8.5mm x 8mm
- Fuse Type Blowing Characteristic: Quick Blow
- Lead Diameter: 0.6mm
- Lead Length: 18.8mm
- Lead Spacing: 5.08mm
- PCB Hole Diameter: 1mm
