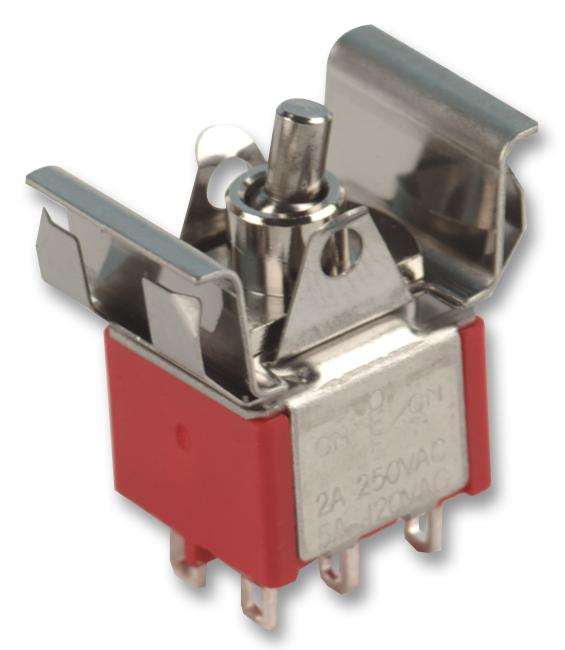

MULTICOMP PRO - 3MD3M1QE - Switch Body, DPDT
- For Use With: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Actuator / Cap Colour: Chrome
- Contact Configuration: DPDT
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 5A
- Contact Current AC Max: 2A
- Contact Current DC Max: 5A
- Contact Current Max: 2A
- Contact Current Rating: 5A
- Contact Resistance: 20mohm
- Contact Voltage AC Max: 20V
- Contact Voltage AC Nom: 20V
- Contact Voltage DC Max: 20V
- Contact Voltage DC Nom: 20V
- External Depth: 9.56mm
- External Length / Height: 12.7mm
- External Width: 11.43mm
- Height: 12.7mm
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 6.35mm
- Panel Cutout Width: 10.62mm
- Panel Cutout length: 17.96mm
- Switch Mounting: Panel
- Switch Operation: On-Off-On
- Thread Size: 1/4" x 40 NS
