4-1415073-1... RELAY, SPDT, 240VAC, 16A SCHRACK - TE CONNECTIVITY

SCHRACK - TE CONNECTIVITYSKU:4-1415073-1... Bestelcode:4219831

Prijs:
Actie prijs€19,92

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (82 units)

Documenten en downloads

Omschrijving

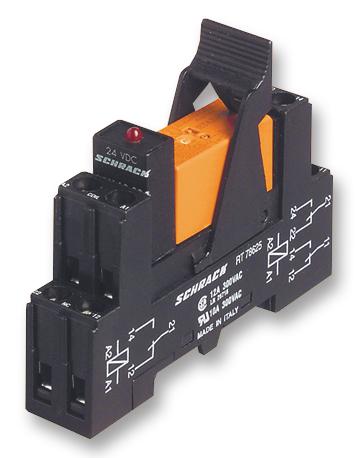

SCHRACK - TE CONNECTIVITY - 4-1415073-1 - Power Relay, SPDT, 24 VDC, 16 A, RT Package, DIN Rail, Non Latching

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 16A
  • Product Range: RT Package Series
  • Relay Mounting: DIN Rail
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 1.44kohm
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 16A
  • Contact Current Max: 16A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 240V
  • Current Rating: 16A
  • External Depth: 69mm
  • External Height: 77mm
  • External Length / Height: 77mm
  • External Width: 15.5mm
  • Flammability Rating: UL94V-0
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 7ms
  • Relay Type: Power
  • Release Time: 3ms
