4114N/2H4 Fan, 119mm, 24Vdc ebm-papst

EBM-PAPSTSKU:4114N/2H4 Bestelcode:1293496

Prijs:
Actie prijs€127,04

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (80 units)

Documenten en downloads

Omschrijving

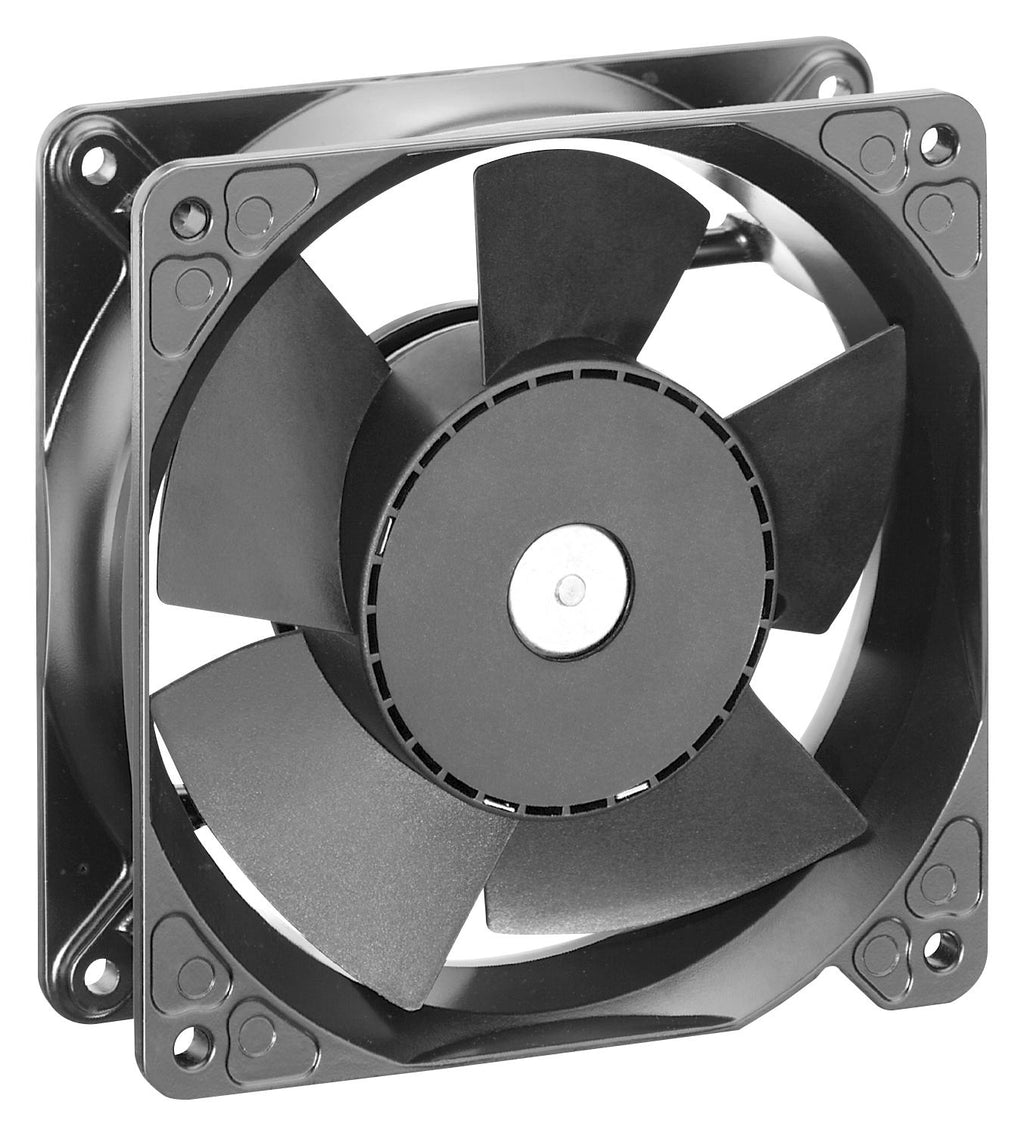

EBM-PAPST - 4114N/2H4 - DC Axial Fan, 24 V, Square, 119 mm, 38 mm, Ball Bearing, 208.9 CFM

  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 119mm
  • External Depth: 38mm
  • Noise Rating: 67dBA
  • Flow Rate - Imperial: 208.9cu.ft/min
  • Flow Rate - Metric: 355m³/h
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: 4100N Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • Case Material: Metal
  • Current Consumption: 1100mA
  • External Height: 119mm
  • External Width: 119mm
  • Frame Dimensions: 119mm x 119mm x 38mm
  • Input Voltage Max: 15VDC
  • Input Voltage Min: 9VDC
  • Lead Length: 310mm
  • Material: Fiberglass-reinforced PA plastic
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Power Consumption: 26W
  • Speed Range Max: 6800rpm
  • Supply Voltage DC Max: 30VDC
  • Supply Voltage DC Min: 16VDC
  • Type: Reverse polarity protection
  • Weight: 390g
