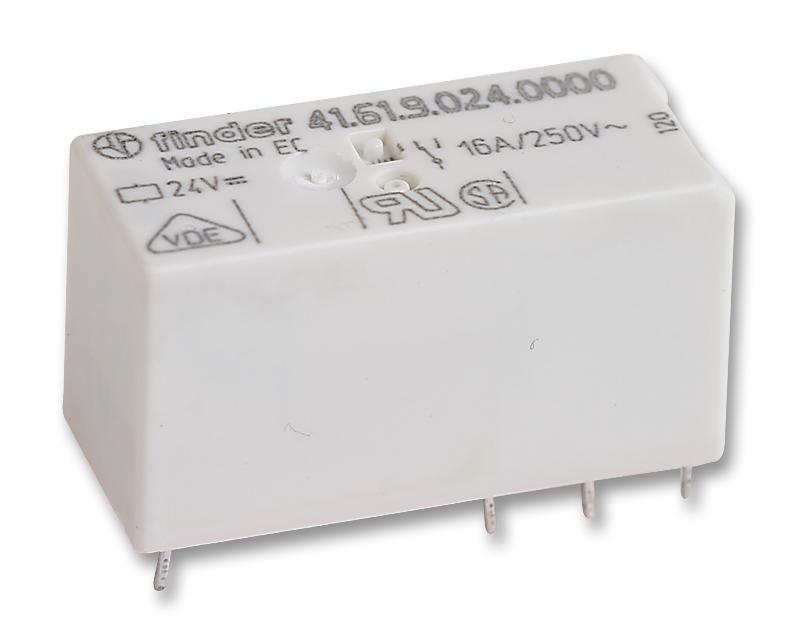

41.61.9.024.0010 Relay, SPDT, 250VAC, 16A Finder

FINDERSKU:41.61.9.024.0010 Bestelcode:1169310

Prijs:
Actie prijs€11,10

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (187 units)

Documenten en downloads

Omschrijving

FINDER - 41.61.9.024.0010 - General Purpose Relay, 41 Series, Power, SPDT, 24 VDC, 16 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 16A
  • Product Range: 41 Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 1.44kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL, VDE
  • Coil Current: 19.7mA
  • Coil Operating Lower Percent Limit: 150%
  • Coil Operating Upper Percent Limit: 75%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 16A
  • Contact Current DC Max: 16A
  • Contact Current Max: 30A
  • Contact Resistance: 1440ohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • DC Coil Power: 400mW
  • External Depth: 29mm
  • External Height: 15.7mm
  • External Length / Height: 15.7mm
  • External Width: 12.7mm
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 5ms
  • Relay Type: Power
  • Release Time: 4ms
